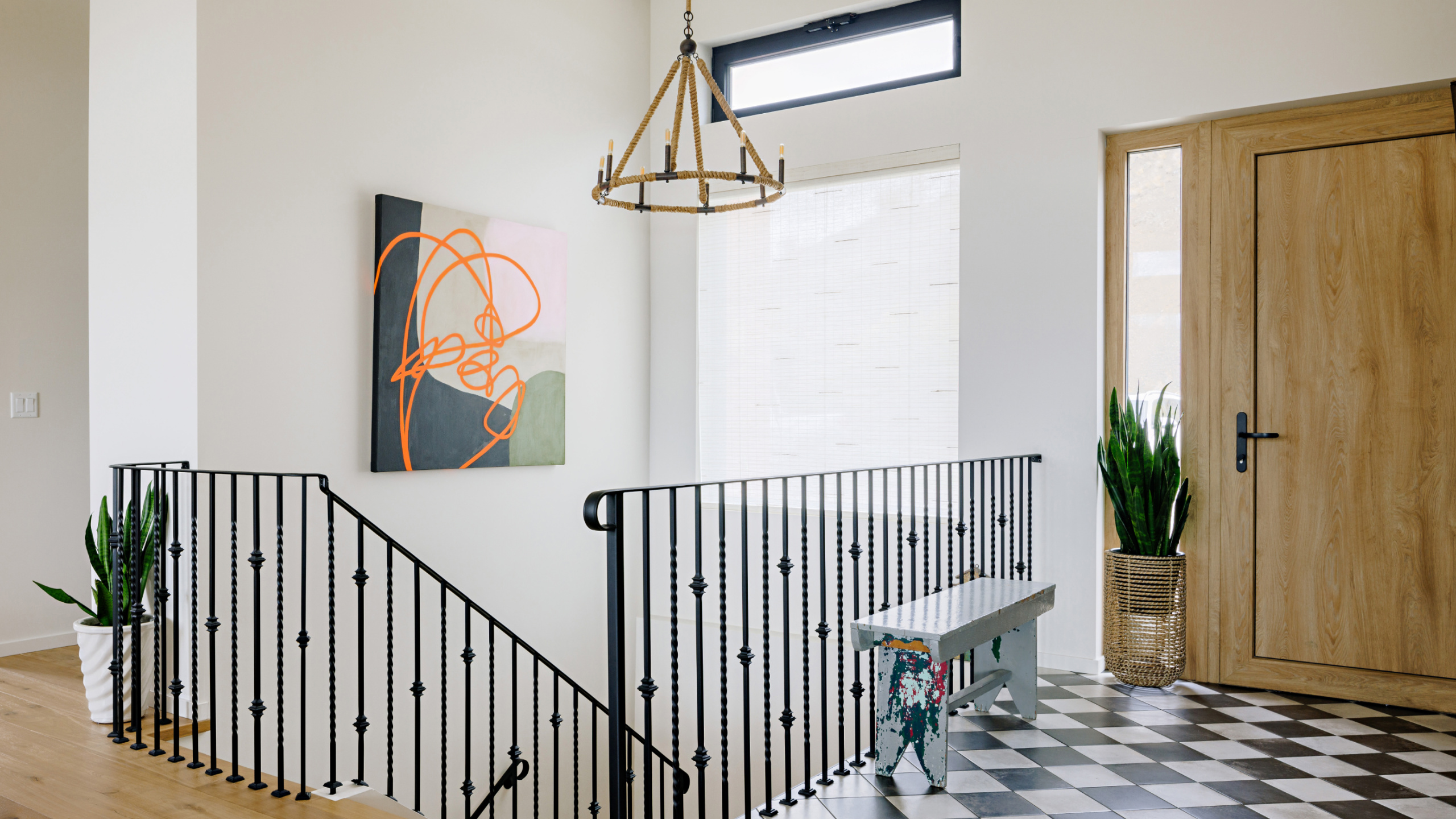

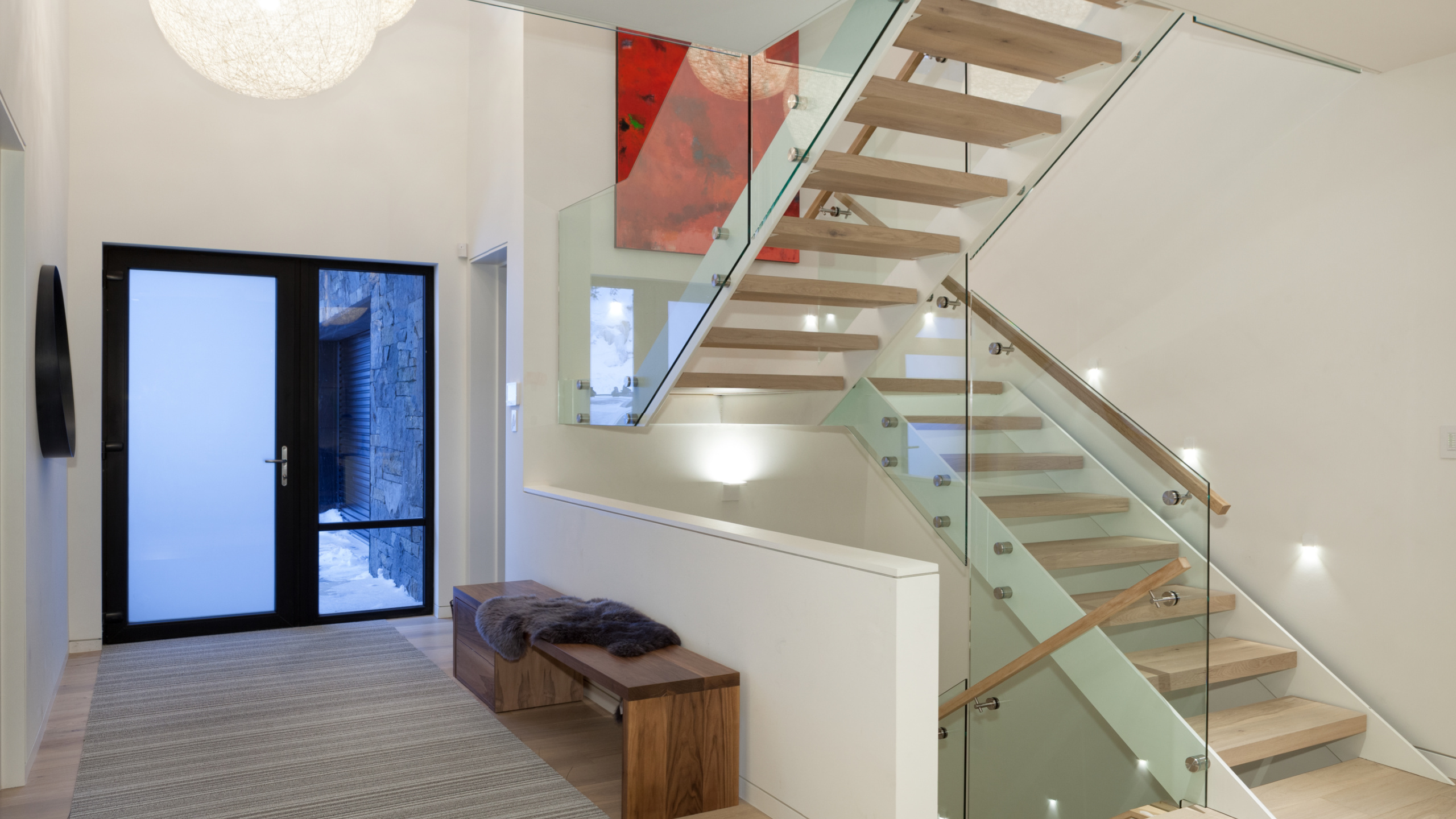

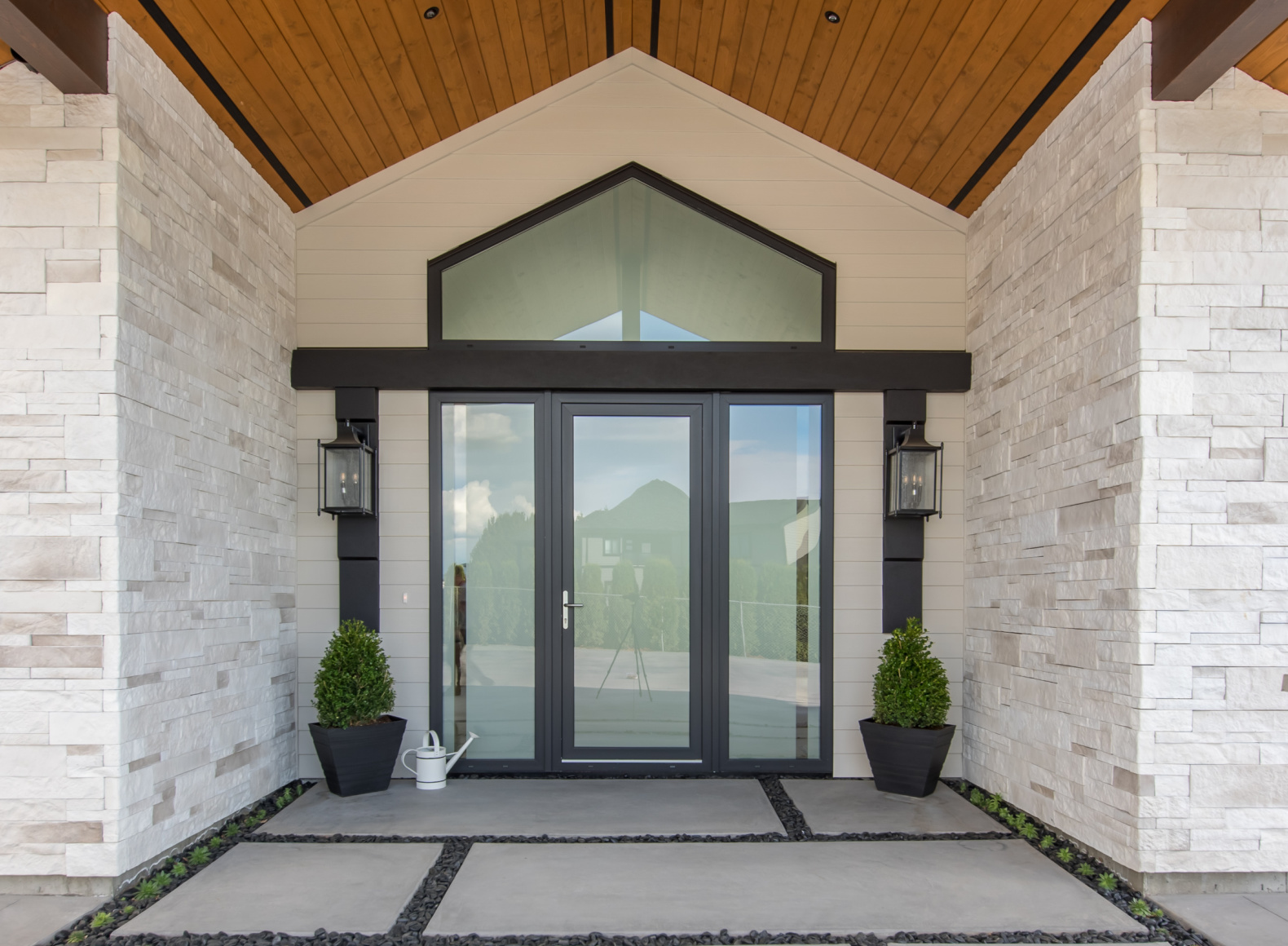

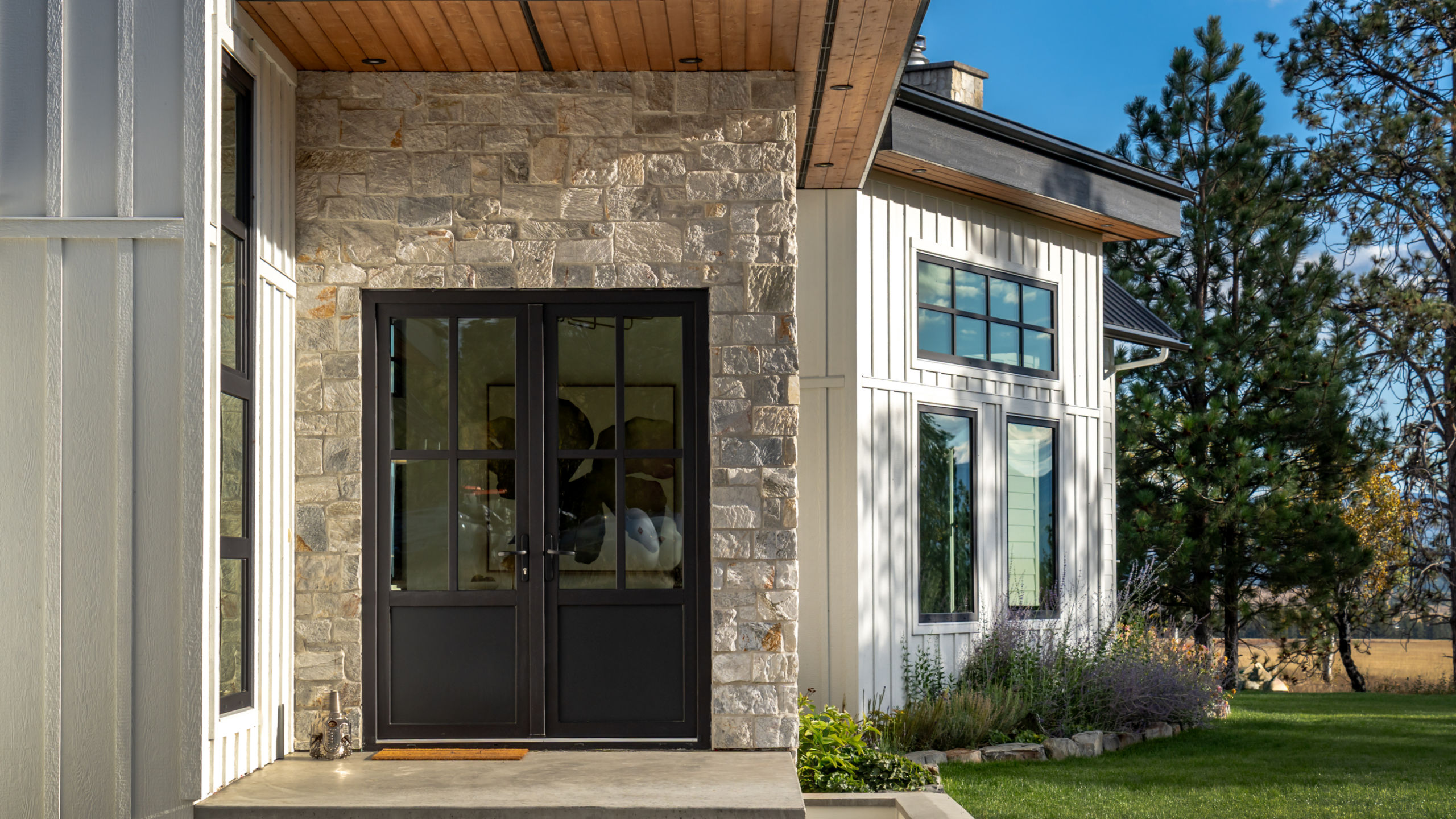

Entry Doors

custom designed high-performance entry doors

Entry Doors combine striking design with exceptional performance. Every door is custom designed to complement your home’s architectural style. With a wide range of configurations, design options and finishes, our entry doors create memorable first impressions without compromising performance.

superior by design

Made in Canada
NFRC and NAFS Tested
Available with glass or solid panels
Add side or top windows

Reinforced Frame & Sash

Entry Doors feature a deep hybrid frame with galvanized steel reinforcement within unplasticized European PVC profiles of both the sash and frame. The frame and door sash are fusion-welded and for maximum rigidity the sash uses internal corner blocks that fuse alongside the uPVC to deeply reinforce the joints. This heavy-duty construction, paired with a multi-chamber design and triple weatherseals, ensures each door delivers exceptional strength and protection from air, water, and noise

Advanced Glazing

Entry Doors are engineered to support the weight of a high-performance insulated glass unit (IGU). A wide glazing cavity, Super Spacer Premium spacer, and thick glass panes with your choice of Low-E coating deliver industry leading thermal performance.

Insulated Epoxy Panels

Entry Doors are available with insulated epoxy panels in a variety of colours. Select the same or a different colour on the exterior and interior of the door. Design it with a full panel or a combination of panel and glass. Panels can also be used in sidelites.

Flexible Design

Entry doors are available with insulated glass units or insulated epoxy panels with your choice of colour, decorative options and handles. Add matching fixed or operable windows above or on the sides to create
the ideal door for your lifestyle and home.

DESIGN OPTIONS / ENTRY DOORS

Our high-performance entry doors are custom crafted to suit your preferred function and style.

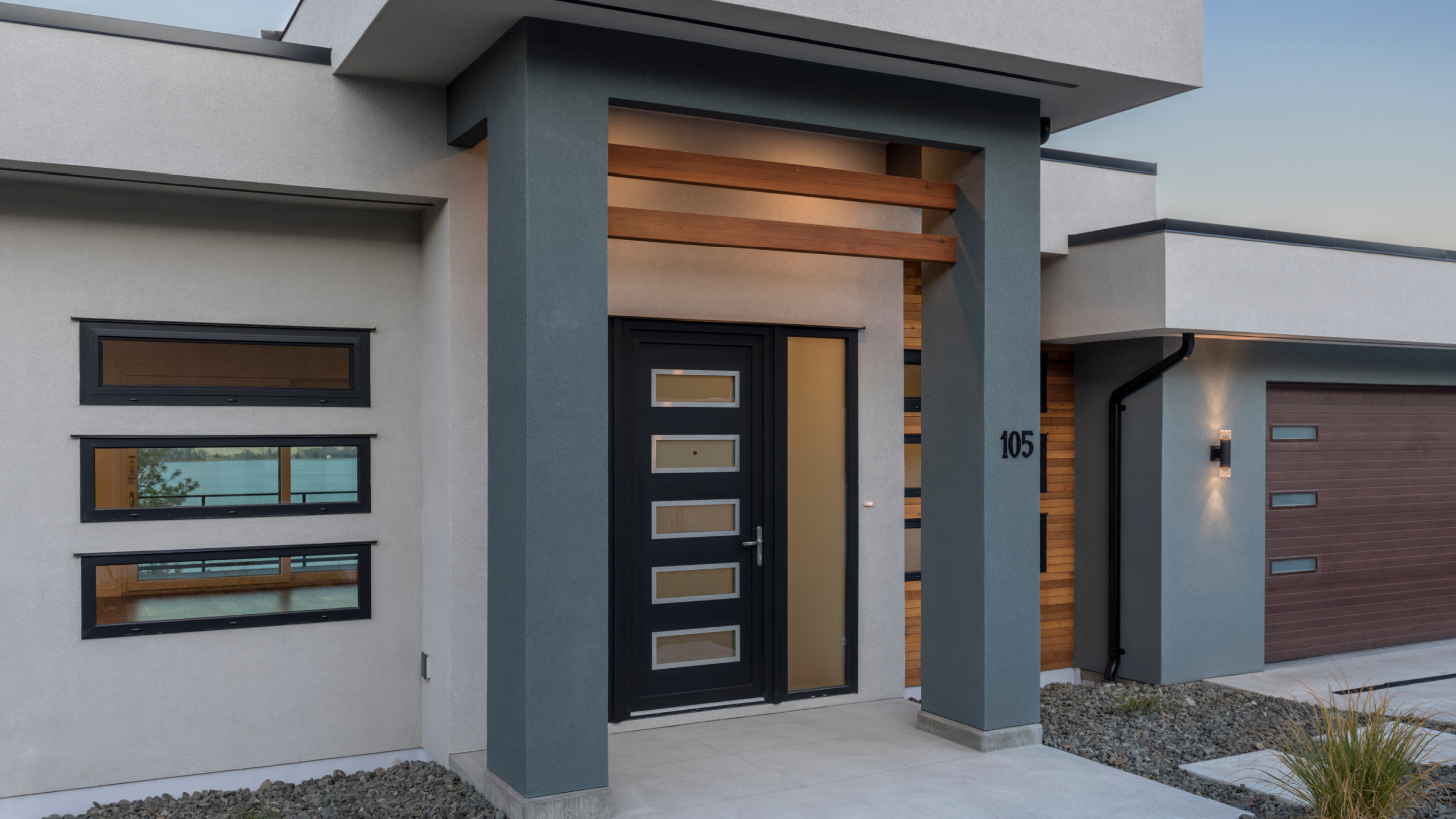

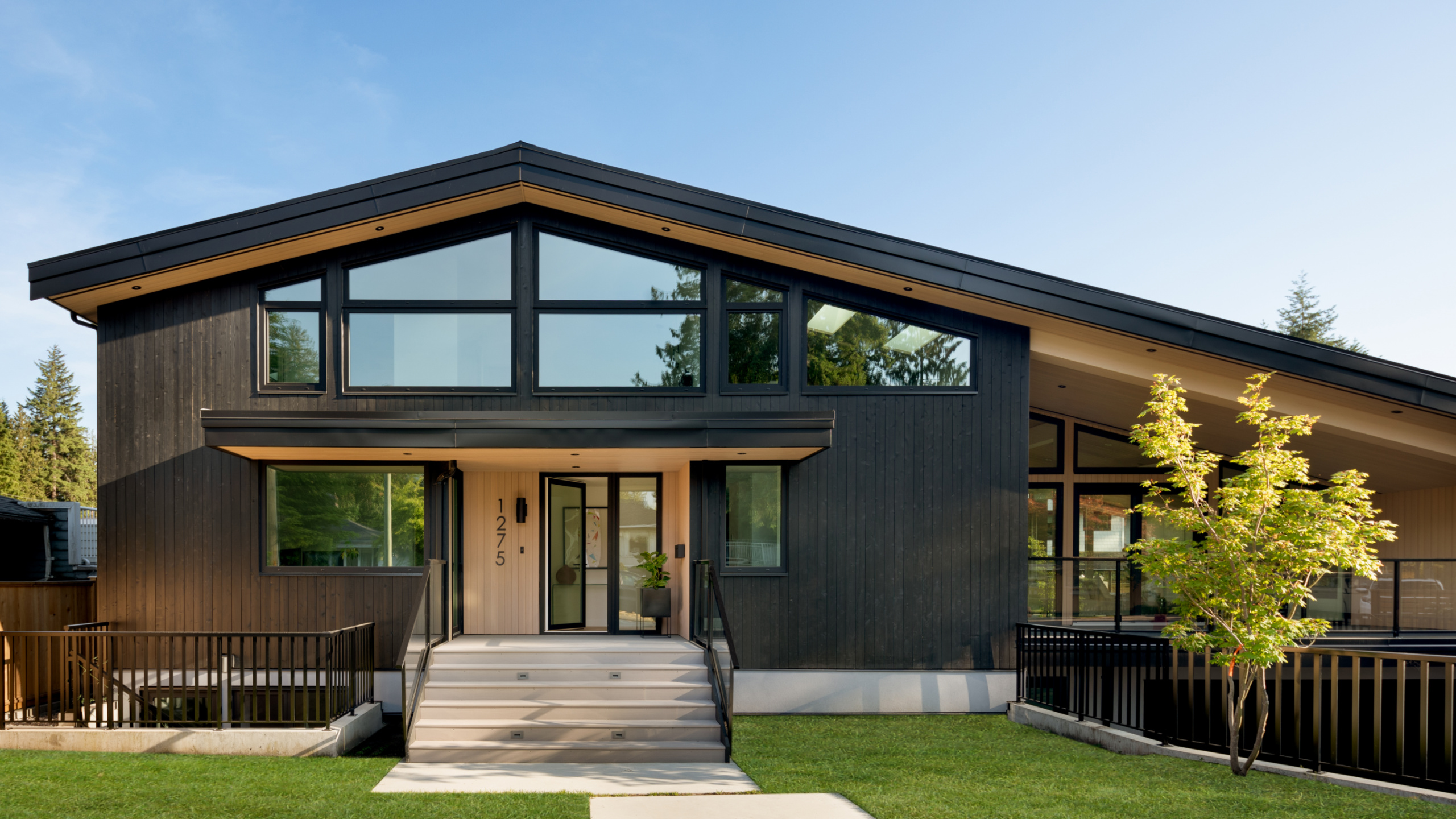

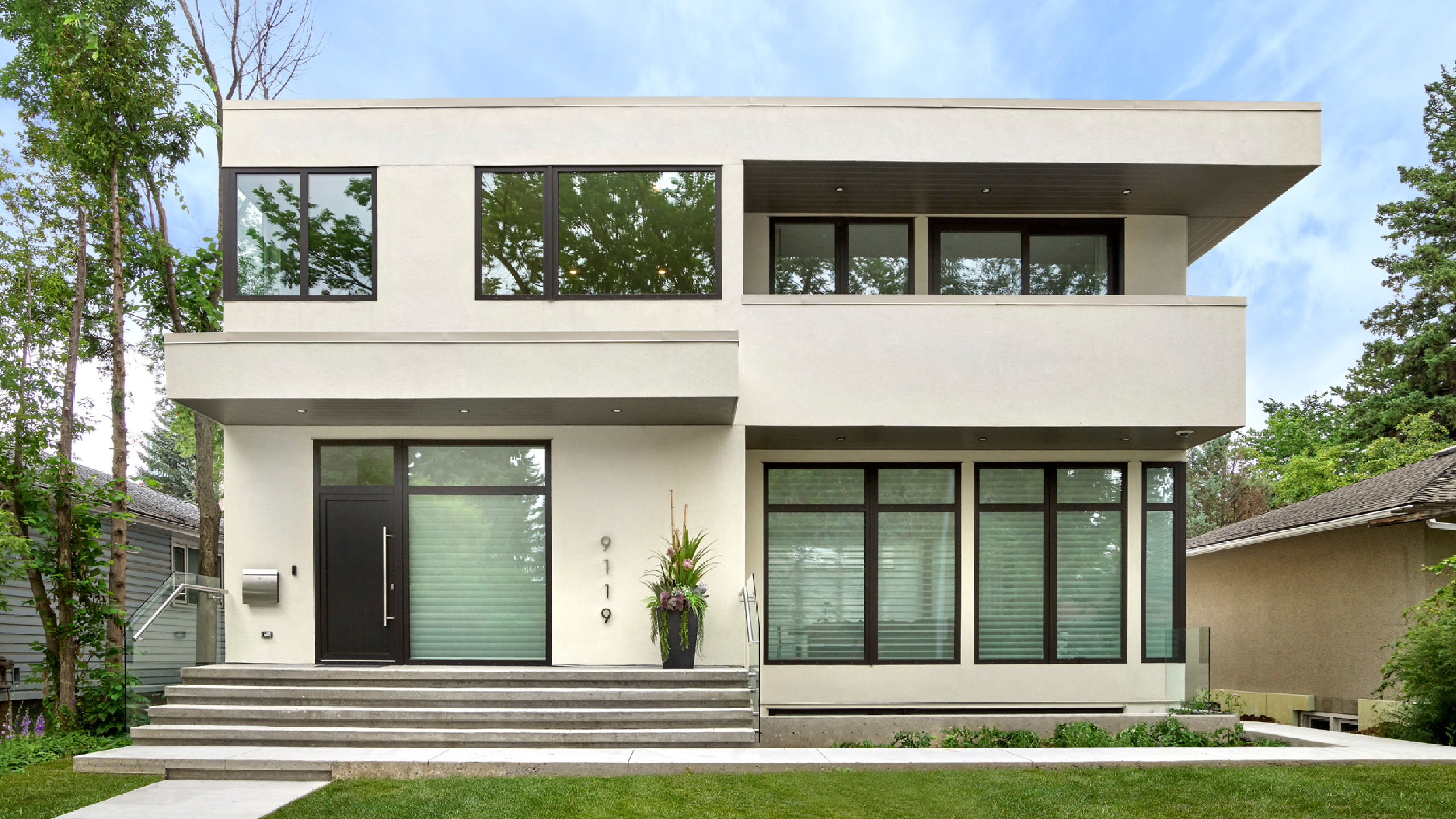

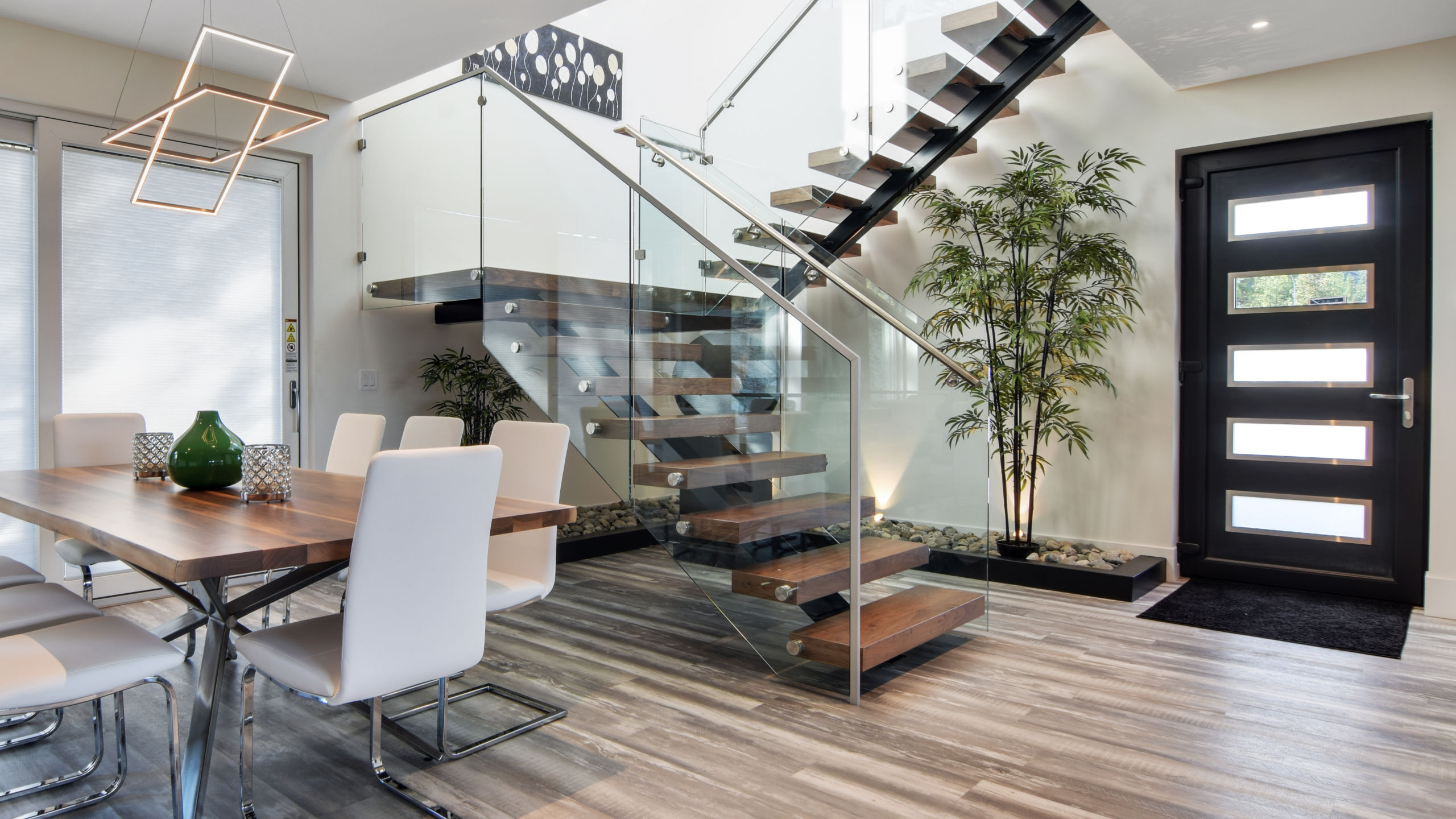

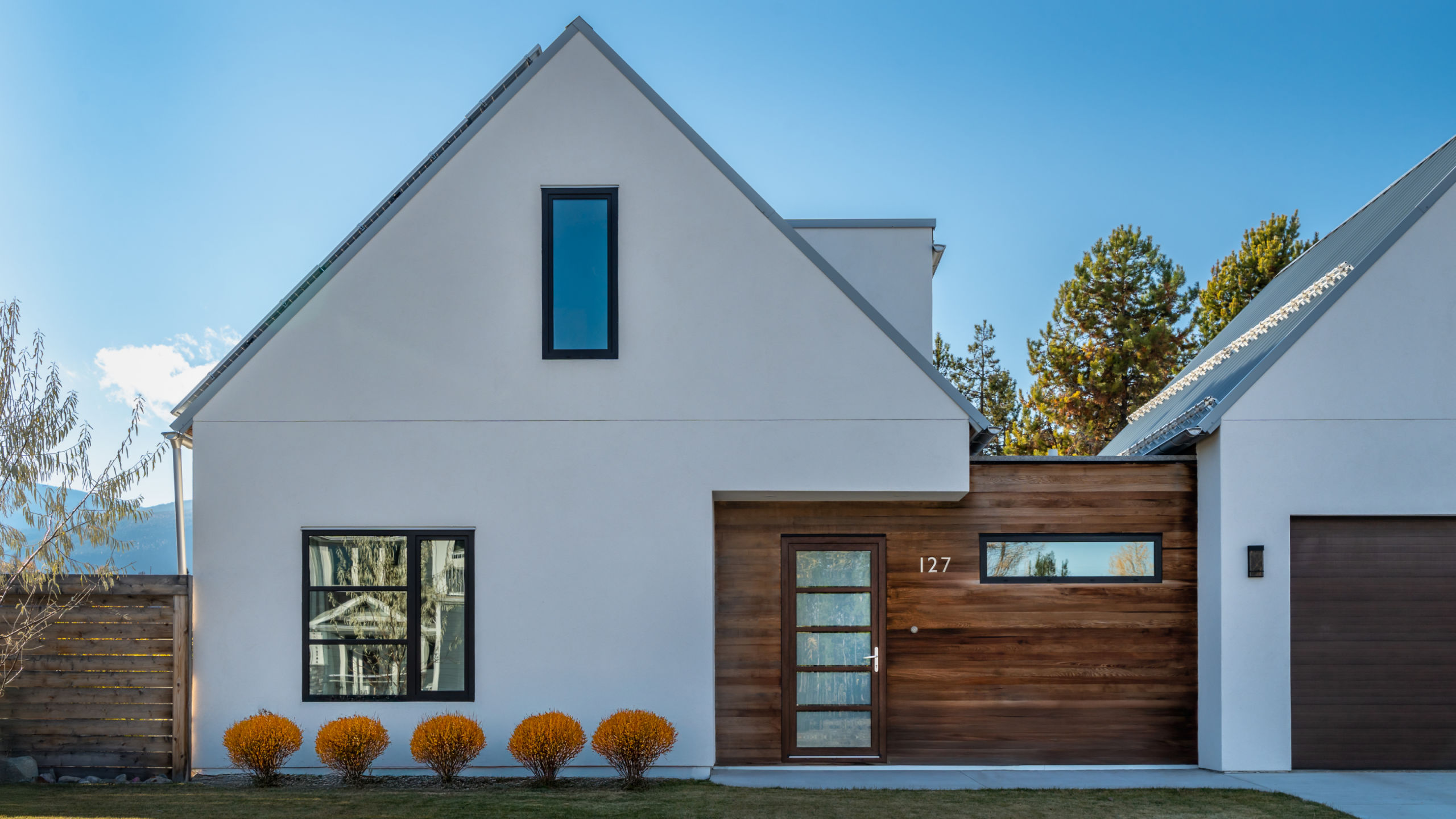

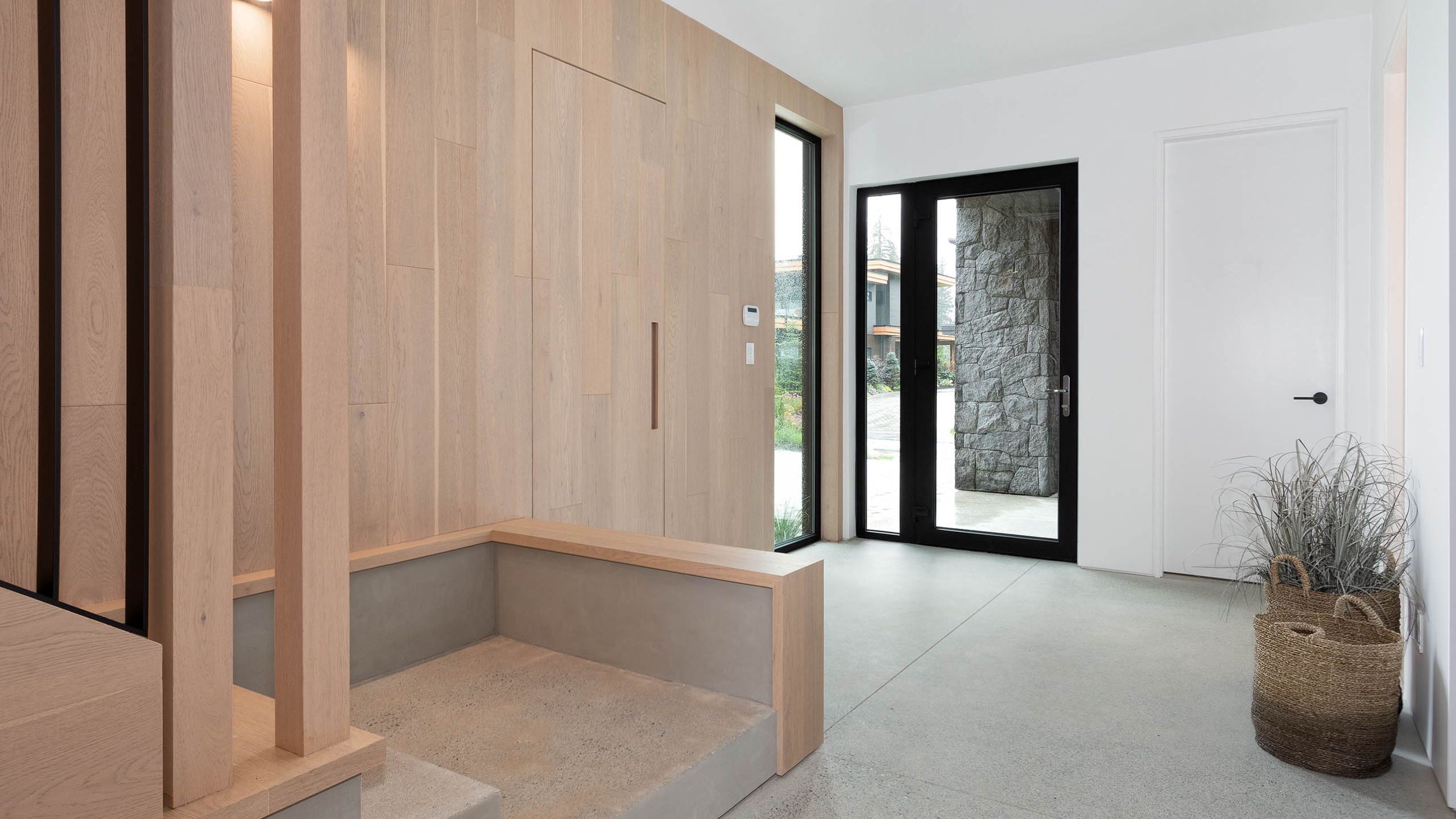

Modern Entry Doors

Our modern collection is made with insulated epoxy panels, stainless steel metal trim and triple glazed insulated glass units. Choose from five distinct designs in a wide range of interior and exterior finishes with clear or sandblasted glass inserts.

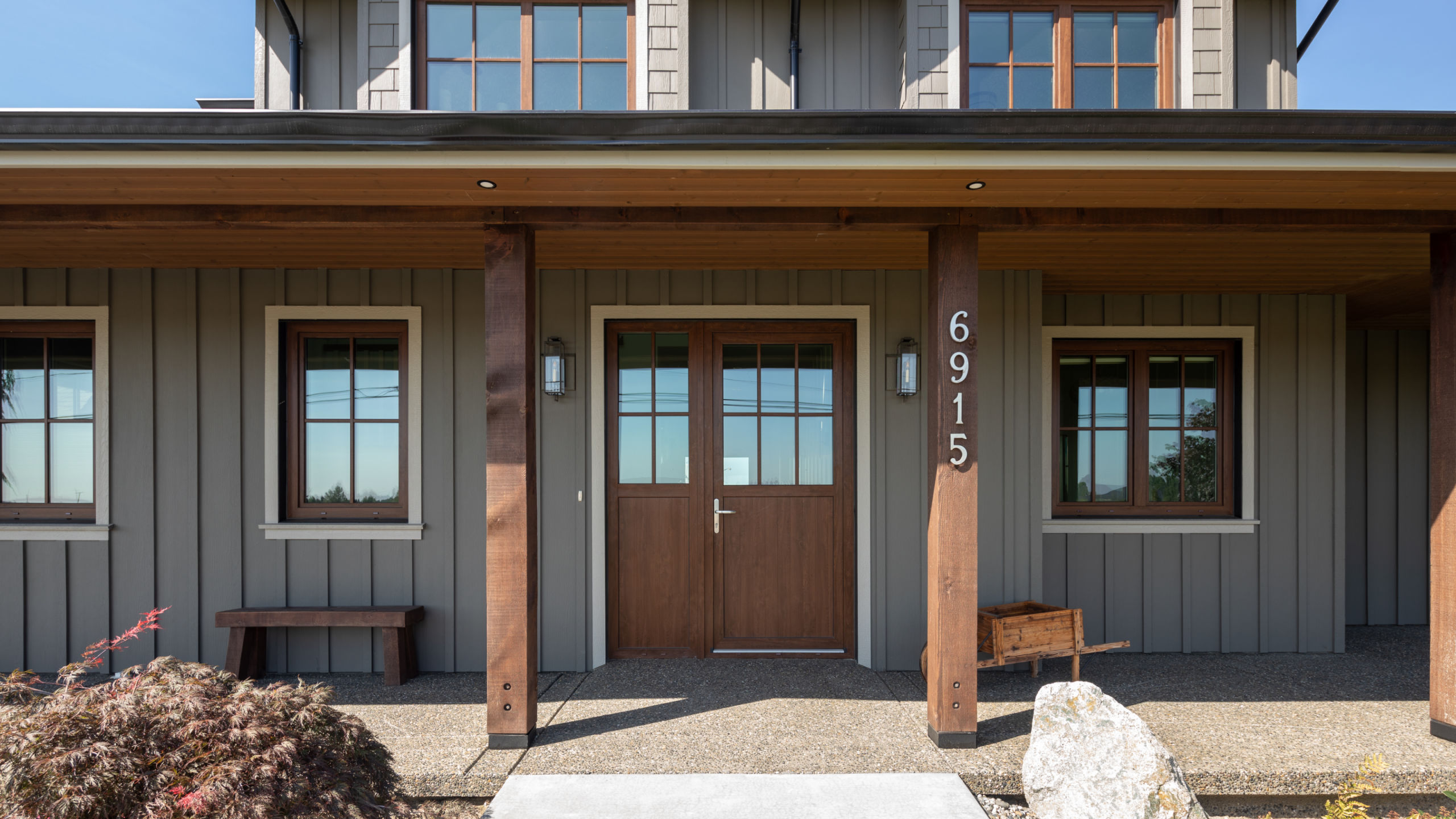

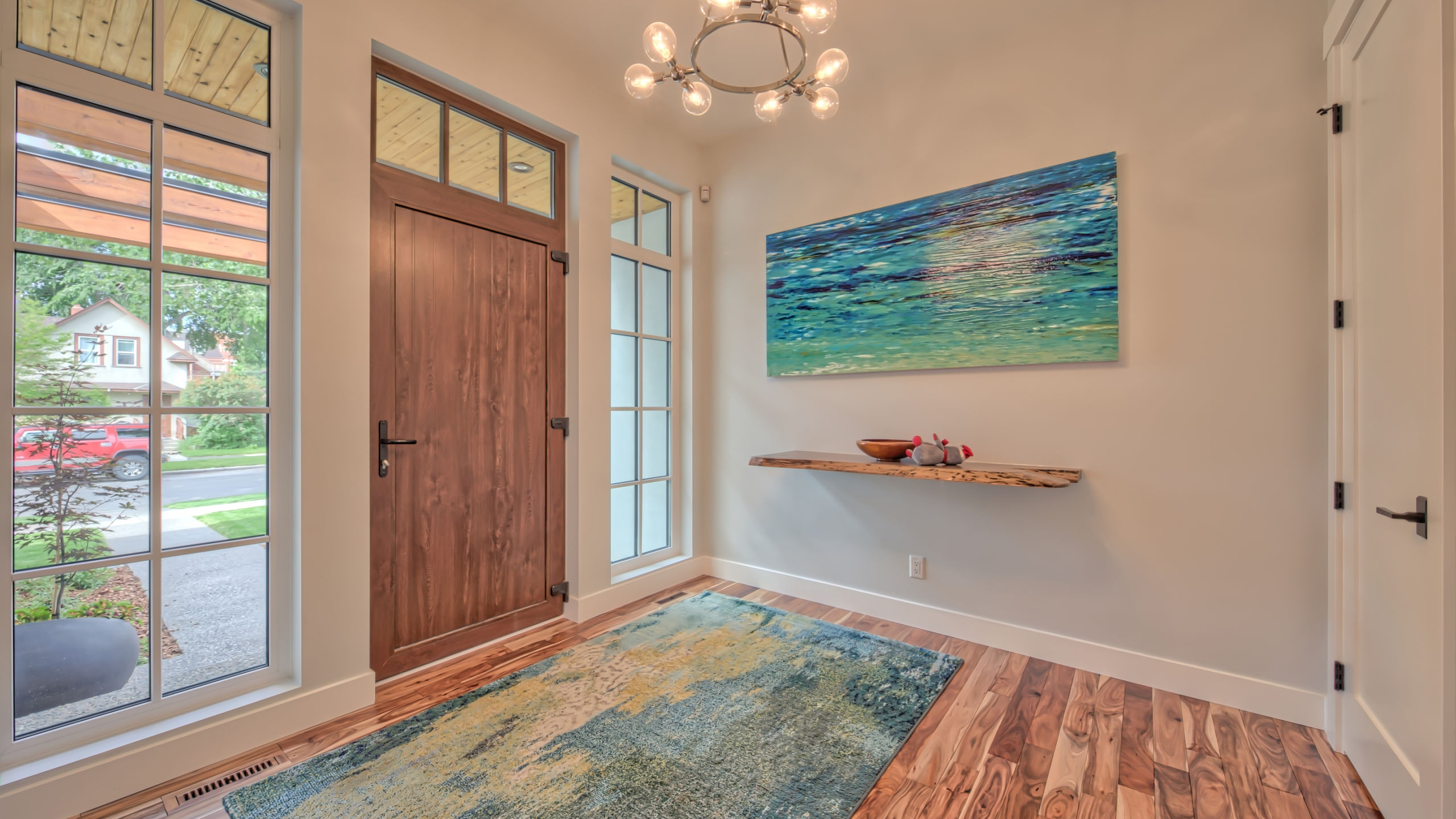

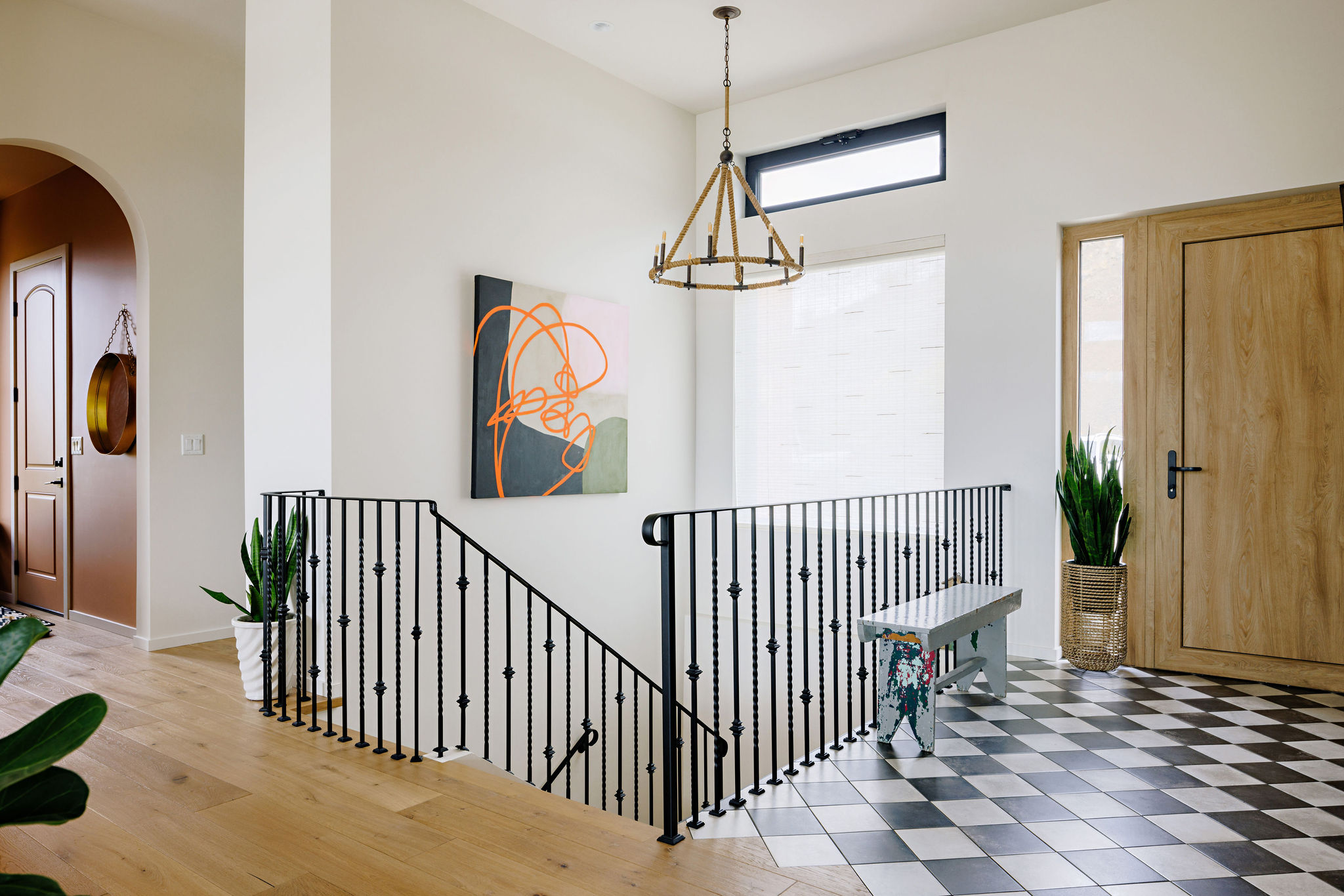

Craftsman Entry Doors

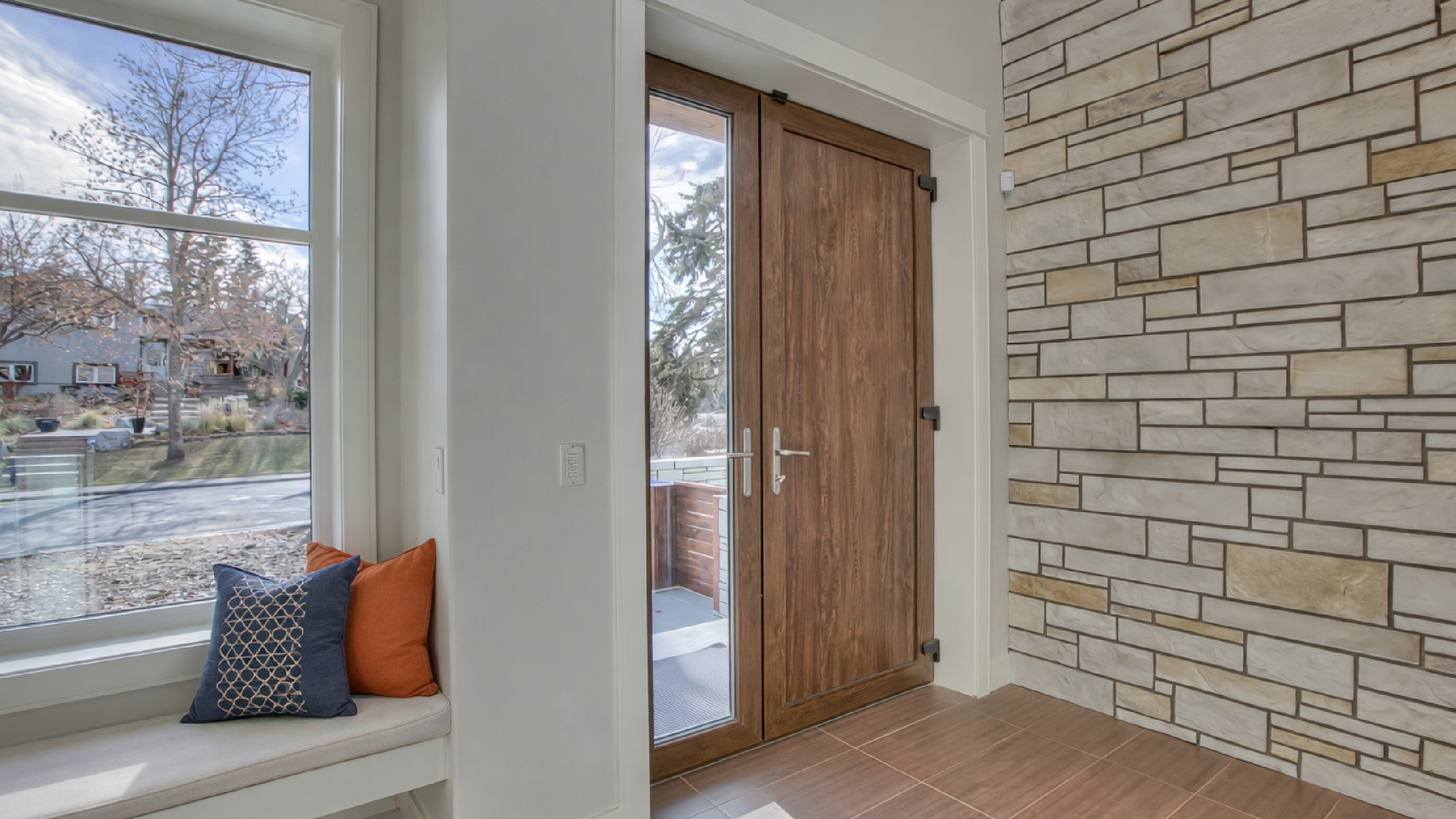

Our traditional collection offers our signature performance and the look of real wood. These entry doors are made with insulated epoxy panels and finished with a durable wood grain foil. Customize your doors with partial or full panels, side or top windows, and grids.

Performance Summary

Entry Doors are NAFS and NFRC tested and labelled. The performance summary provides an overview of key performance metrics; contact us for additional performance information.

Air Tightness

0.01 CFM/FT²

Water Tightness

15 PSF

Structural – Wind Load Resistance

85 PSF

NAFS Performance Class & Grade

CW-PG85

NAFS values are based on the tested size: 47.2″ wide x 96″ high, single door with high-performance sill. Additional NAFS values are available for different product configurations and tested sizes.

U-Factor IP

Steel Reinforced
Triple Glazed: 0.17-0.18

U-Factor SI

Steel Reinforced
Triple Glazed: 0.96-1.02

SHGC

Steel Reinforced
Triple Glazed: 0.13-0.29

NFRC values represent the most common glazing combinations and are based on the tested size: 37.79″ wide x 82.83″ high, single door. Additional NFRC values are available for different glass combinations and options.

Product Resources

Learn more about our Defender 88TS Entry Doors to confidently integrate our high-performance swing doors into your next project. Contact us for additional resources.

Architectural Resources

Product Summary – Inswing Entry Door Product Summary – Inswing Entry Door (DWG) Product Summary – Outswing Entry Door Product Summary – Outswing Entry Door (DWG) Defender 88TS – BIM Models (ZIP)

Product Details

NAFS Summary Product Size Limitations NFRC Summary

Additional Resources

Visit our resources page for product installation, adjustment and maintenance instructions.

Resources & Support

Product Options

Design Flexbility

All of our windows and doors are custom manufactured to your specifications. Select from a variety of performance and decorative options to customize each window and door for your project.

Finish Options

Our windows and doors are available in a variety of interior and exterior colours.

Frame Colours

Exterior and interior frame finish options include durable laminated films. (Due to monitor, video card and/or operating system differences, variations in colour may not be accurate and/or surface texture may not be fully revealed. Before making your final selection, please request a free sample of the colour(s) of your choice from your Innotech Product Consultant.)

Matt Black

Bronze

Anthracite
Grey

Basalt Grey

Quatz Grey

Concrete
Grey

Metbrush
Silver

Kitami

Oak Toffee

Oak Malt

Handle Options for Entry Doors

Entry Doors are available with a selection of handle styles.

Entry Door Handle Styles

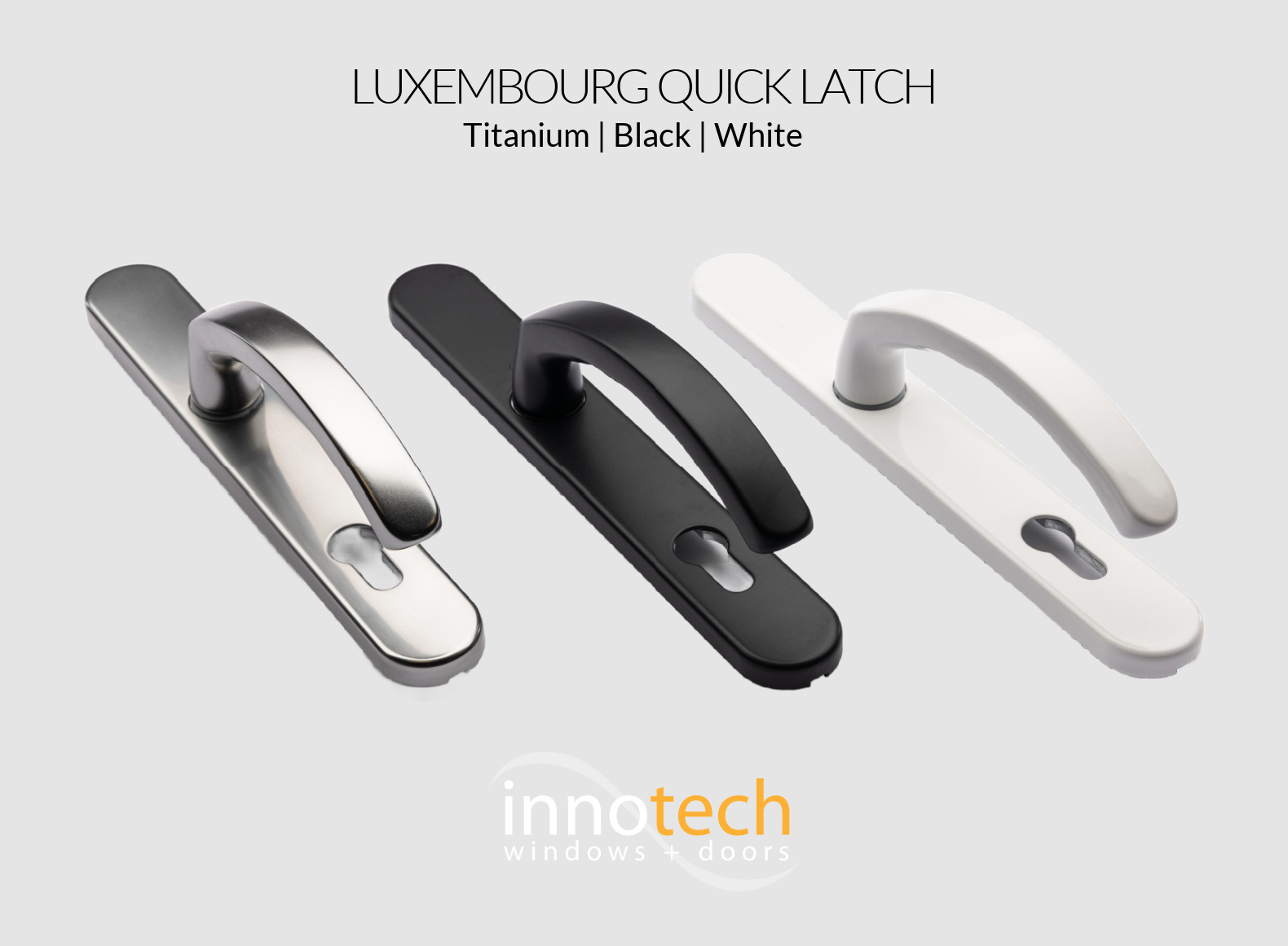

-Luxembourg Collection in Titanium, Black or White

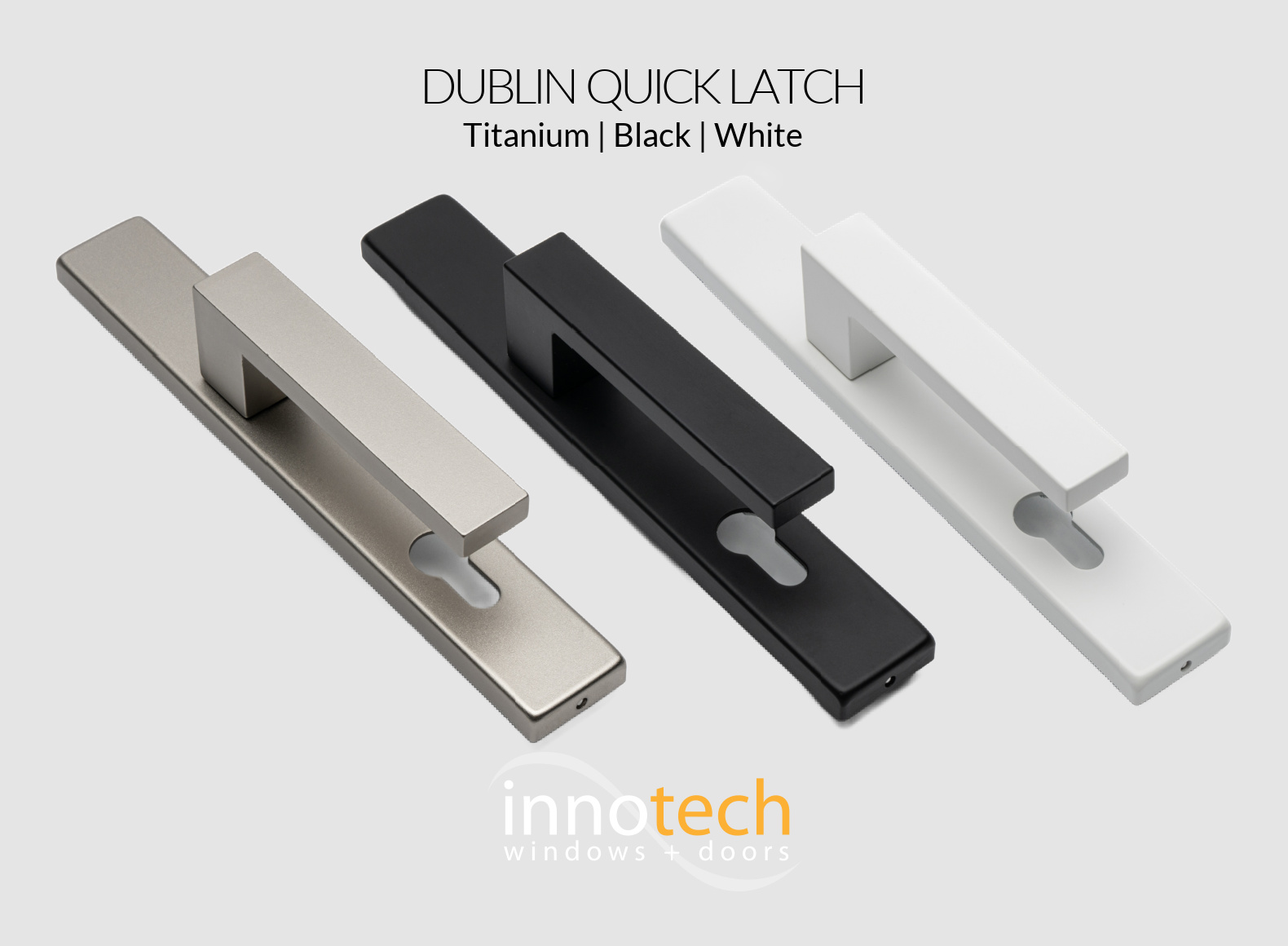

-Dublin Collection in Titanium, Black or White

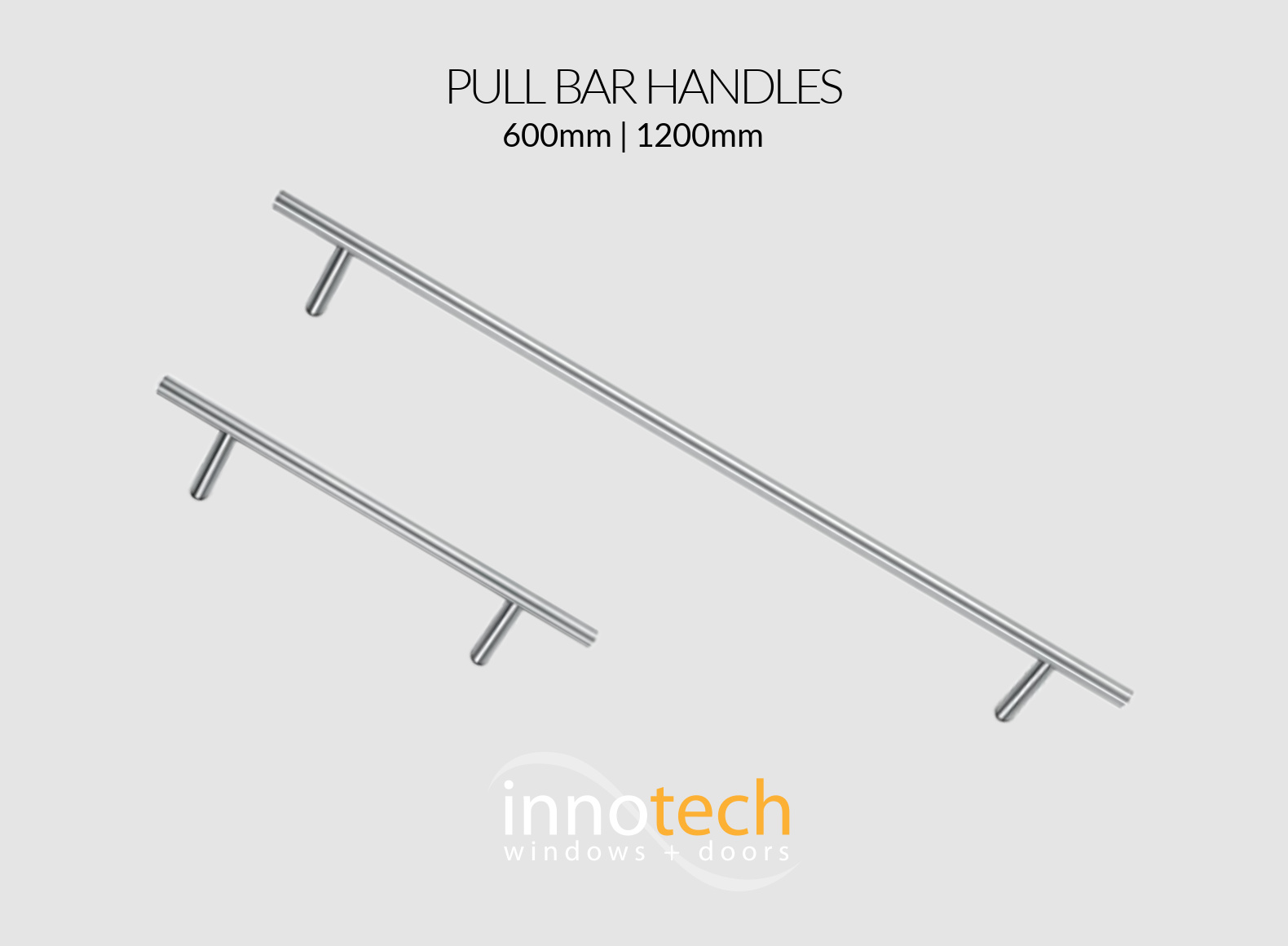

-Pull Bar Handles in 600mm and 1200mm lengths

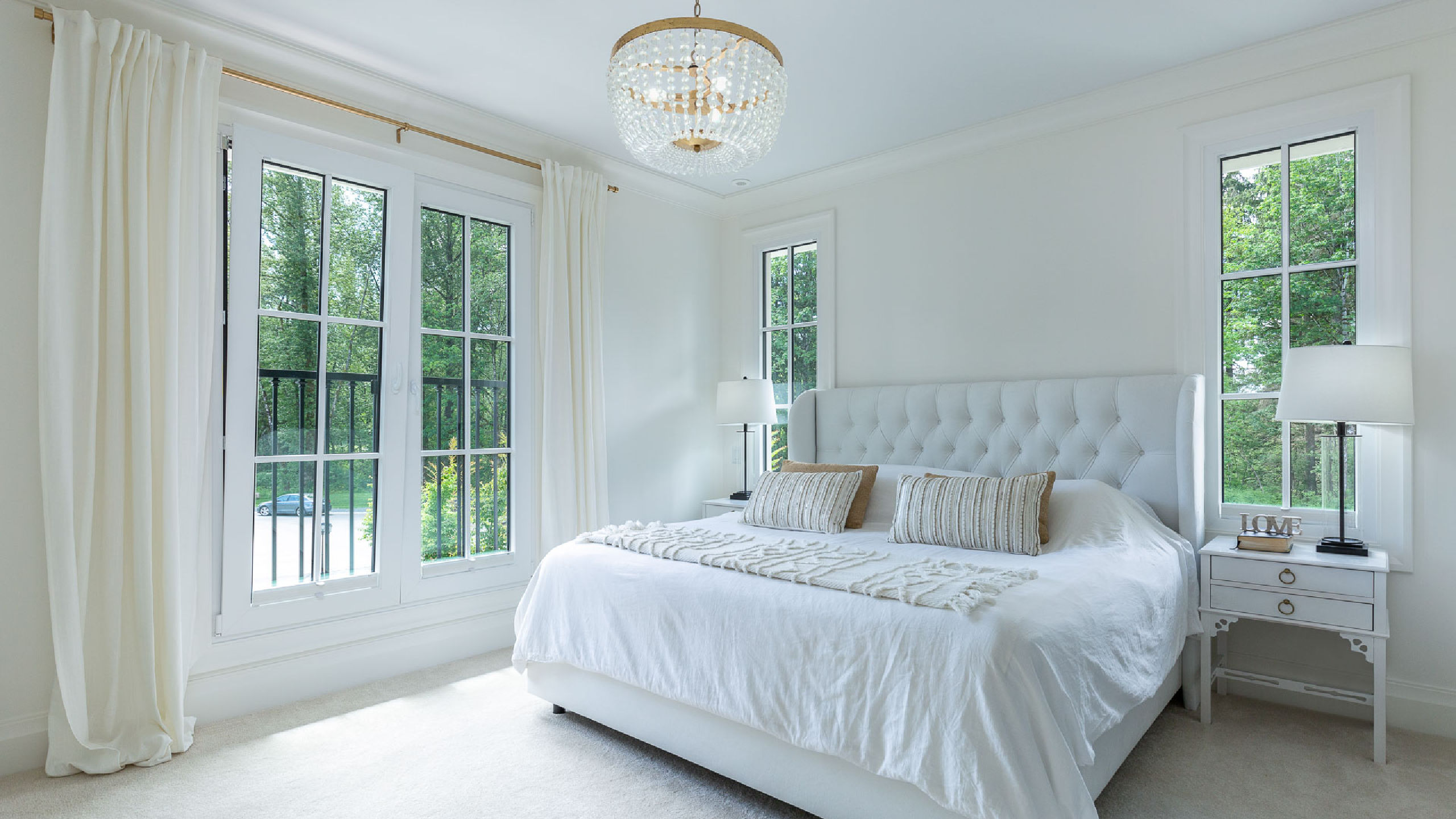

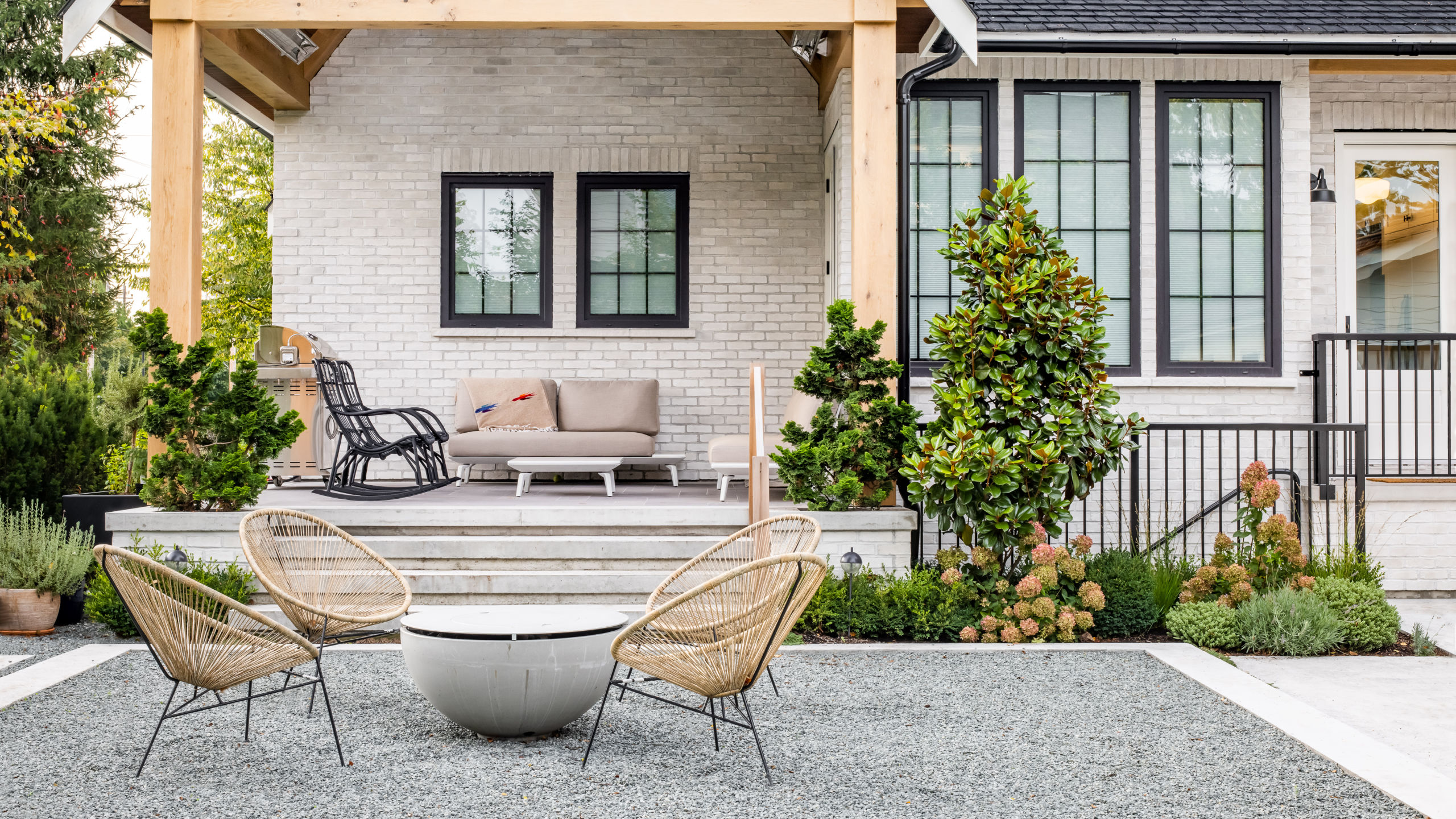

Decorative Grids for Windows + Doors

Our windows and doors are available with a large variety of decorative grids.

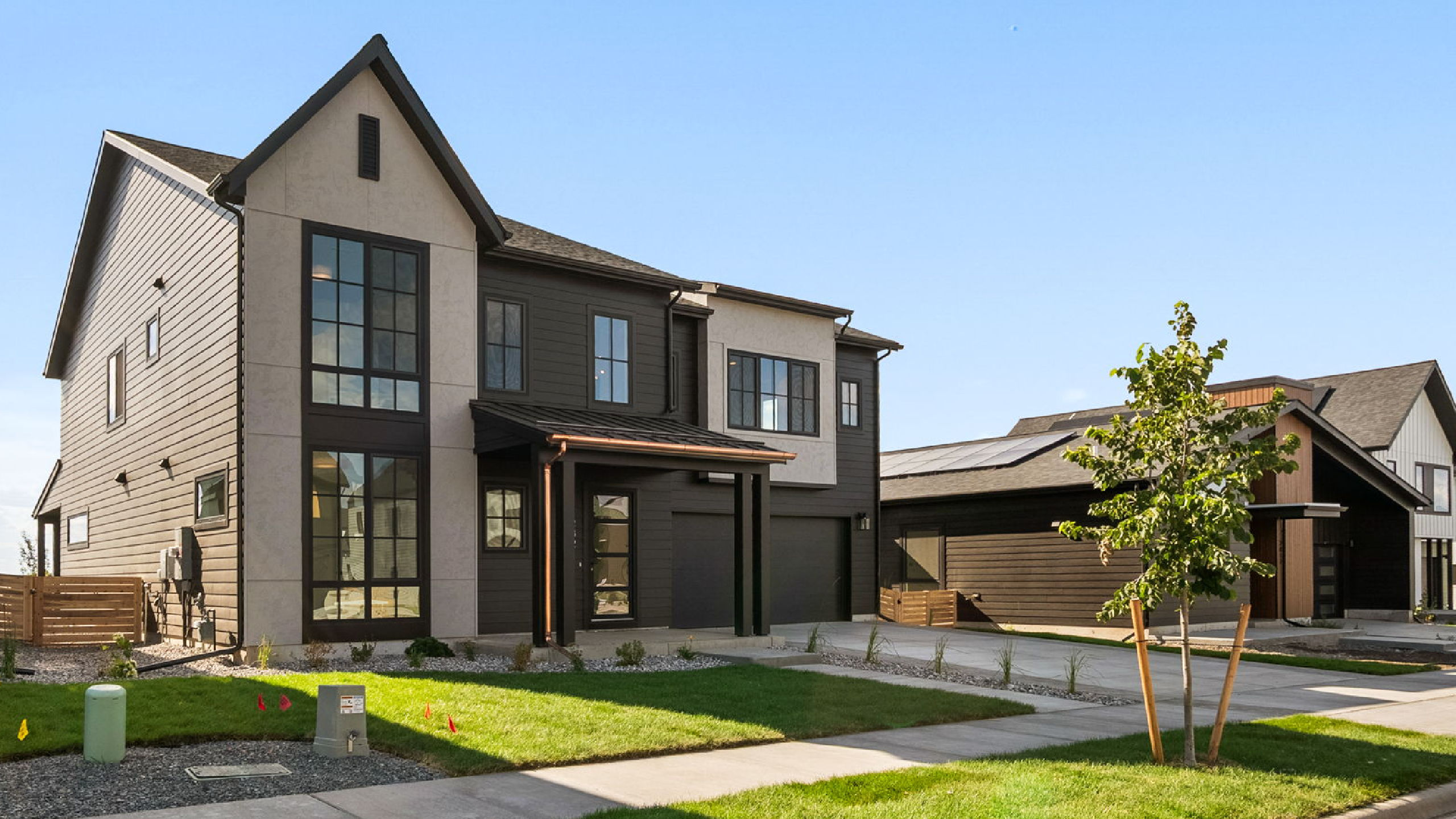

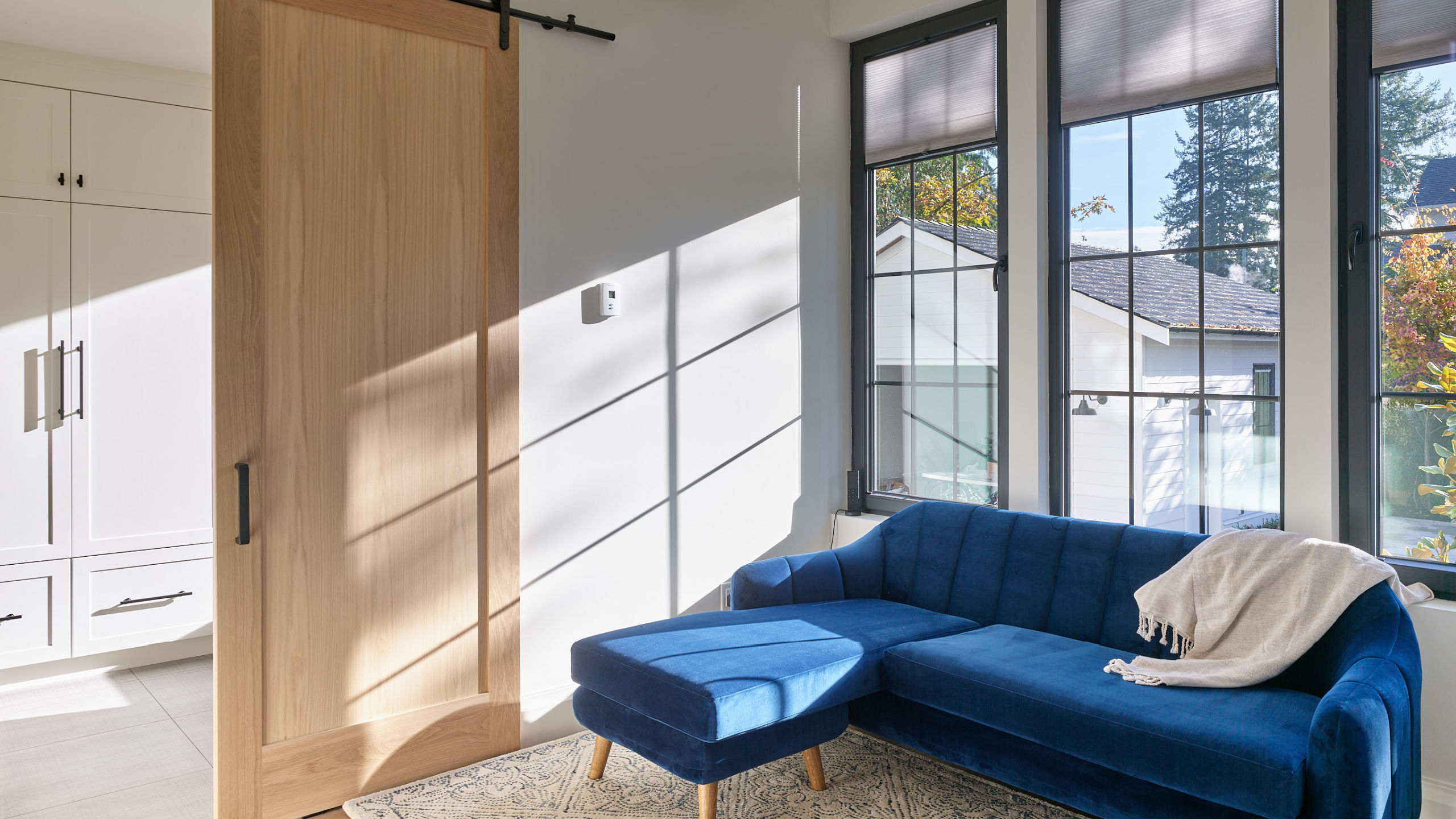

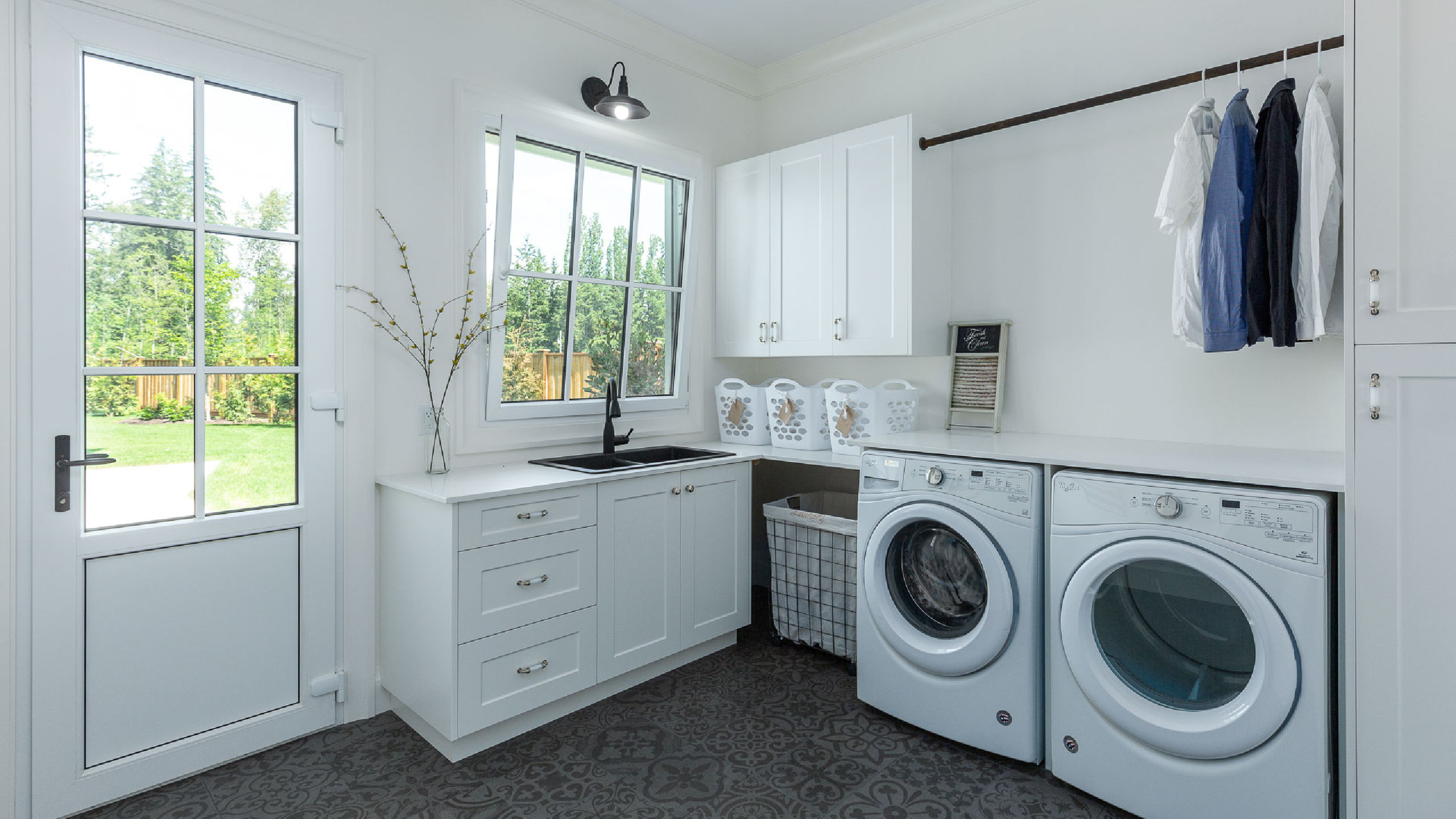

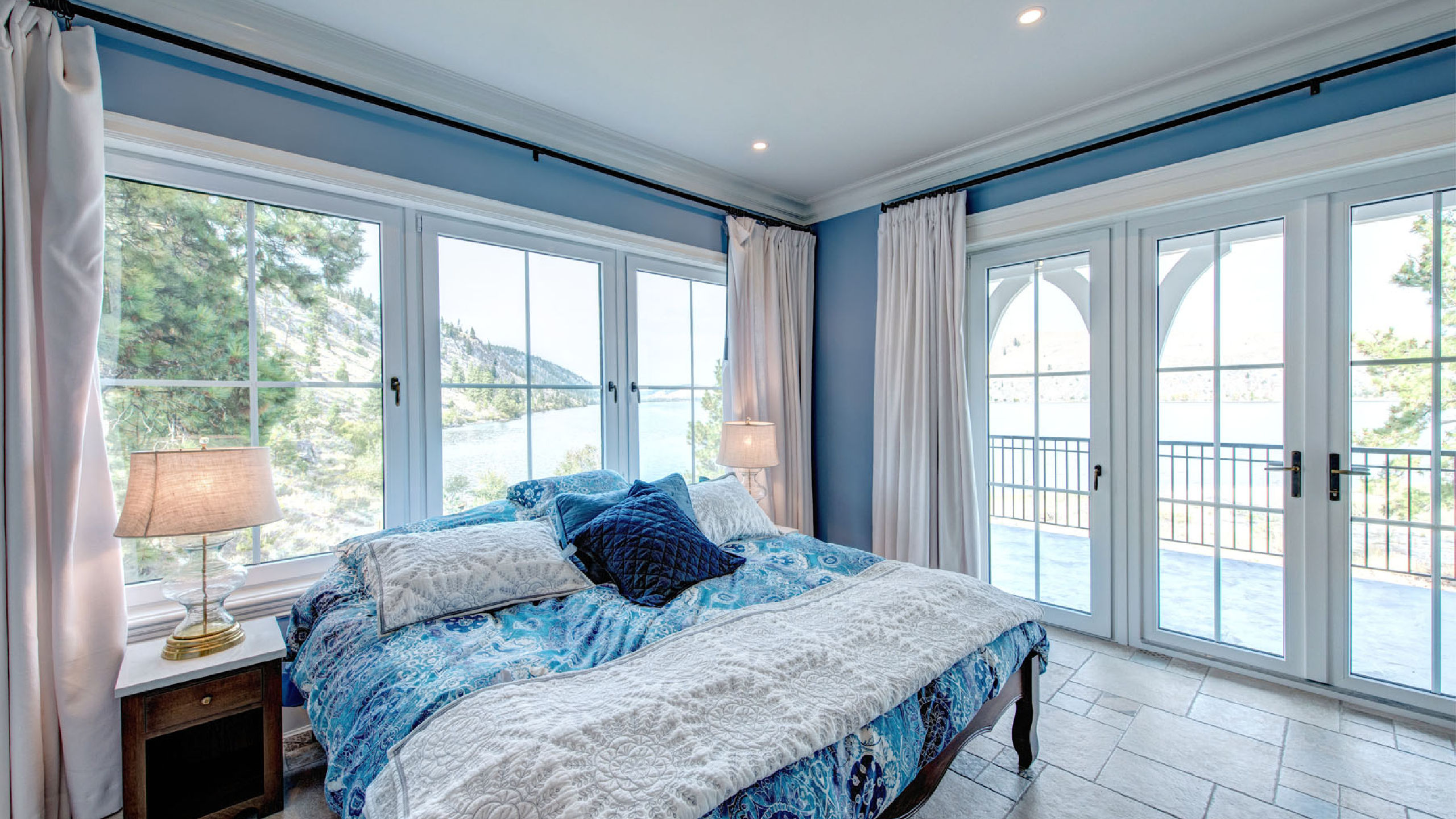

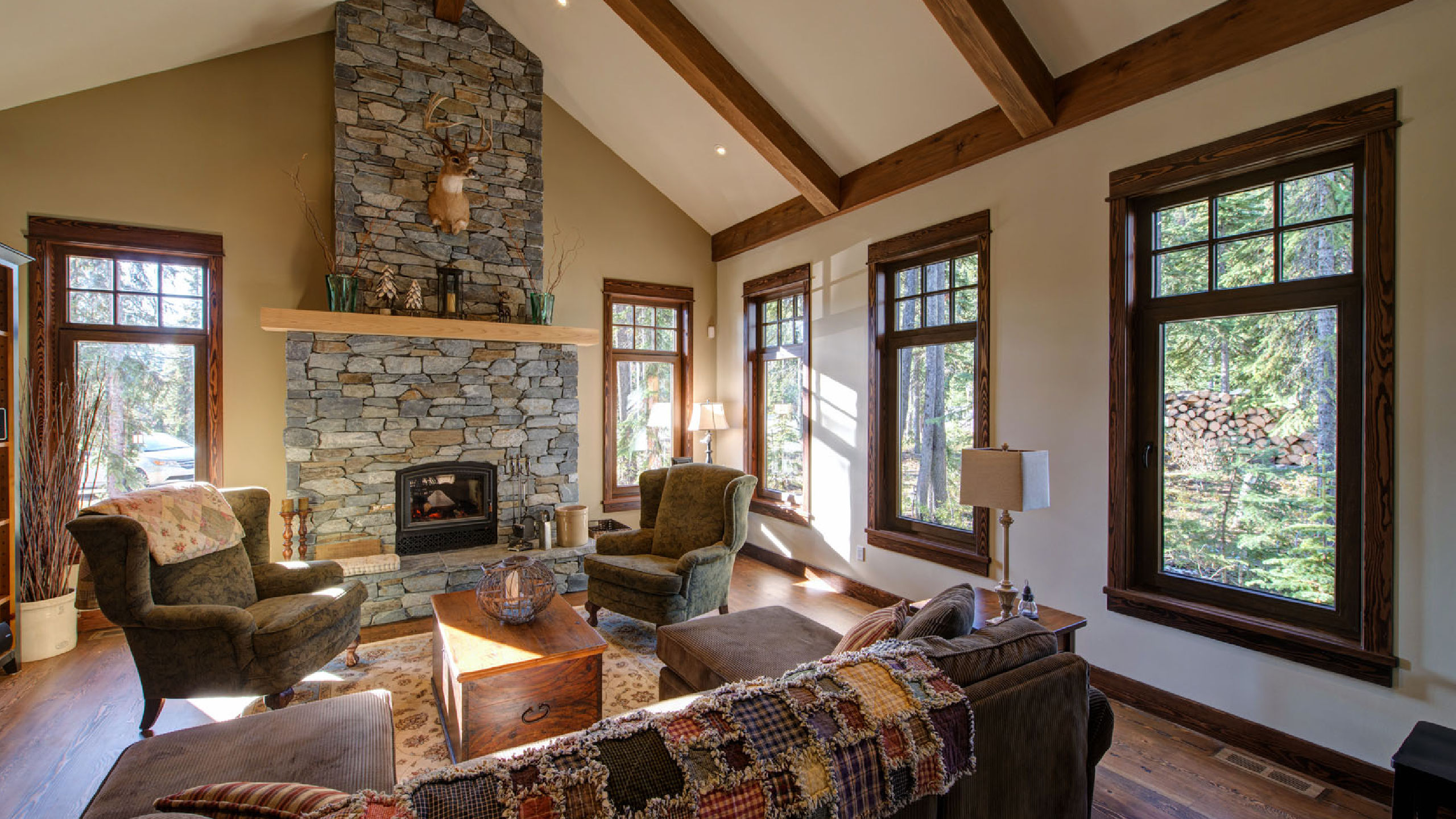

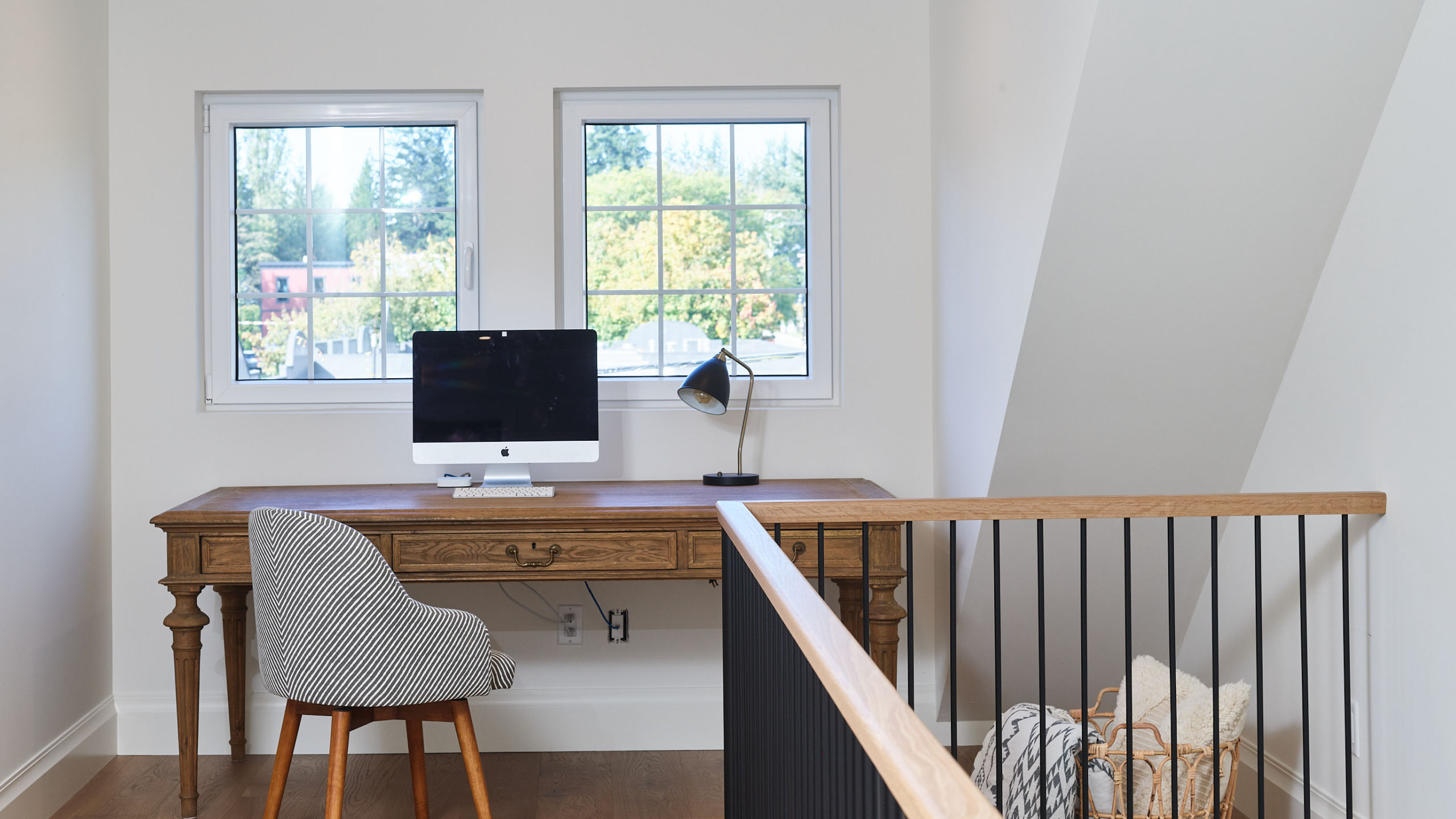

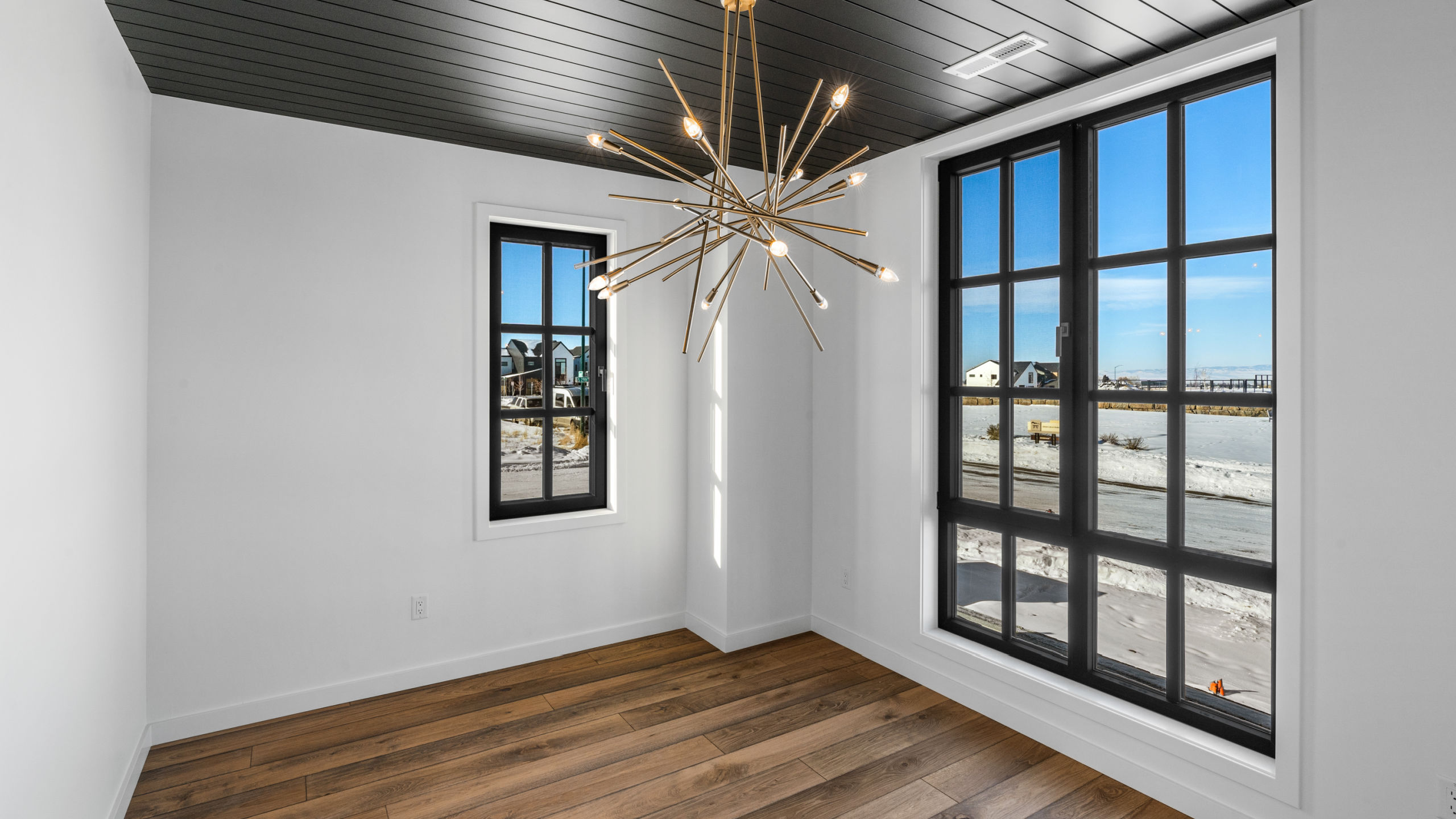

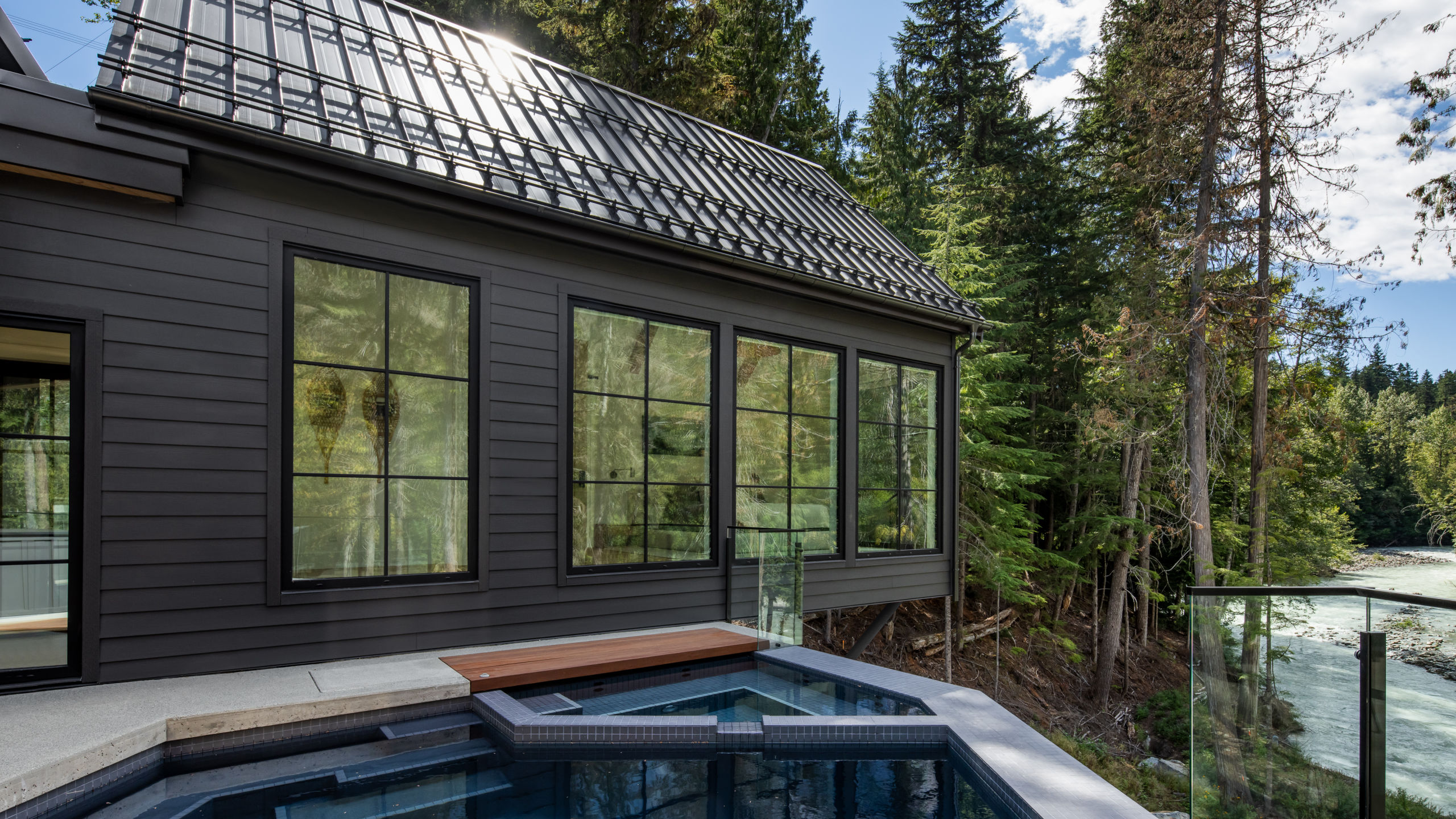

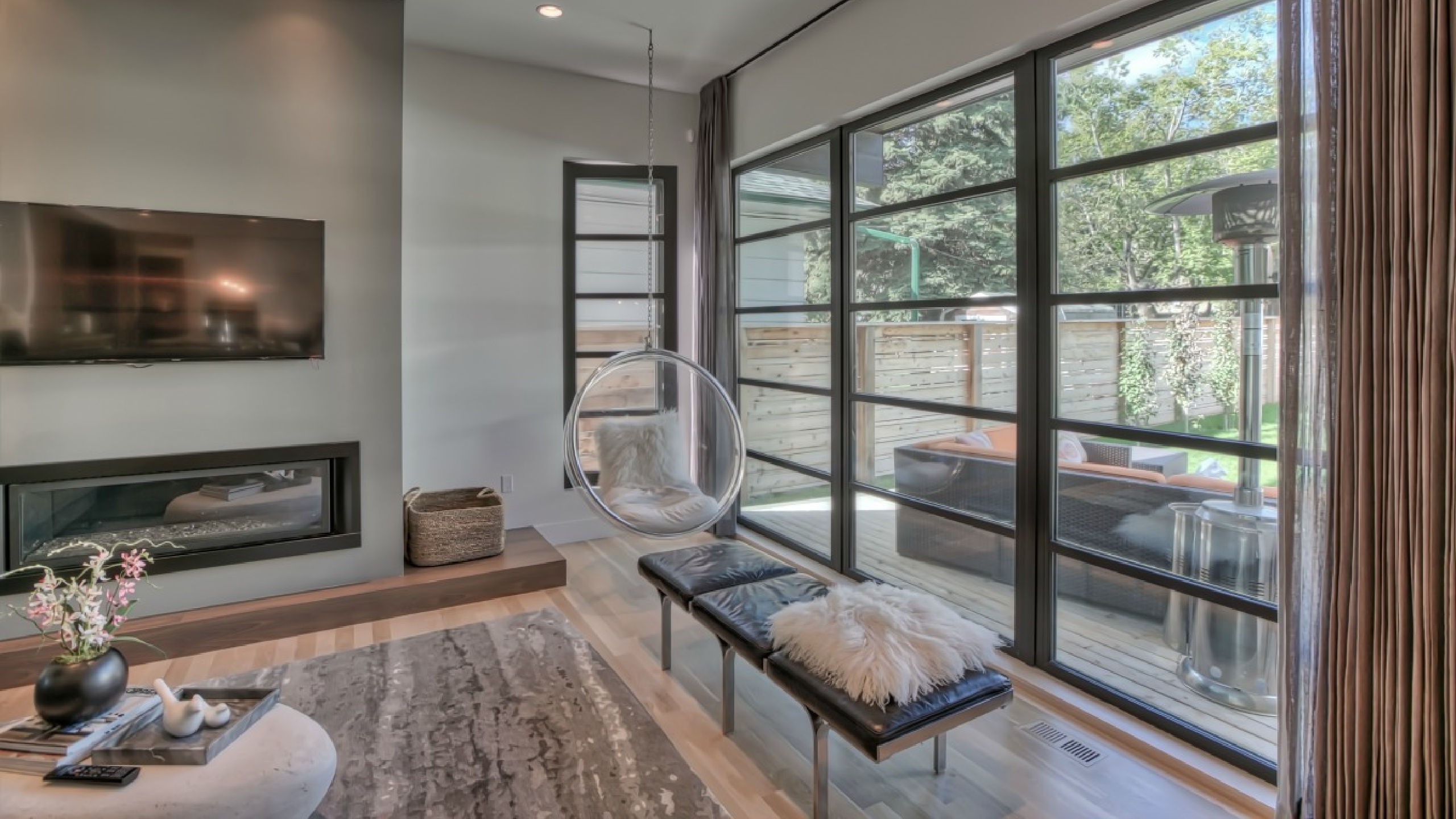

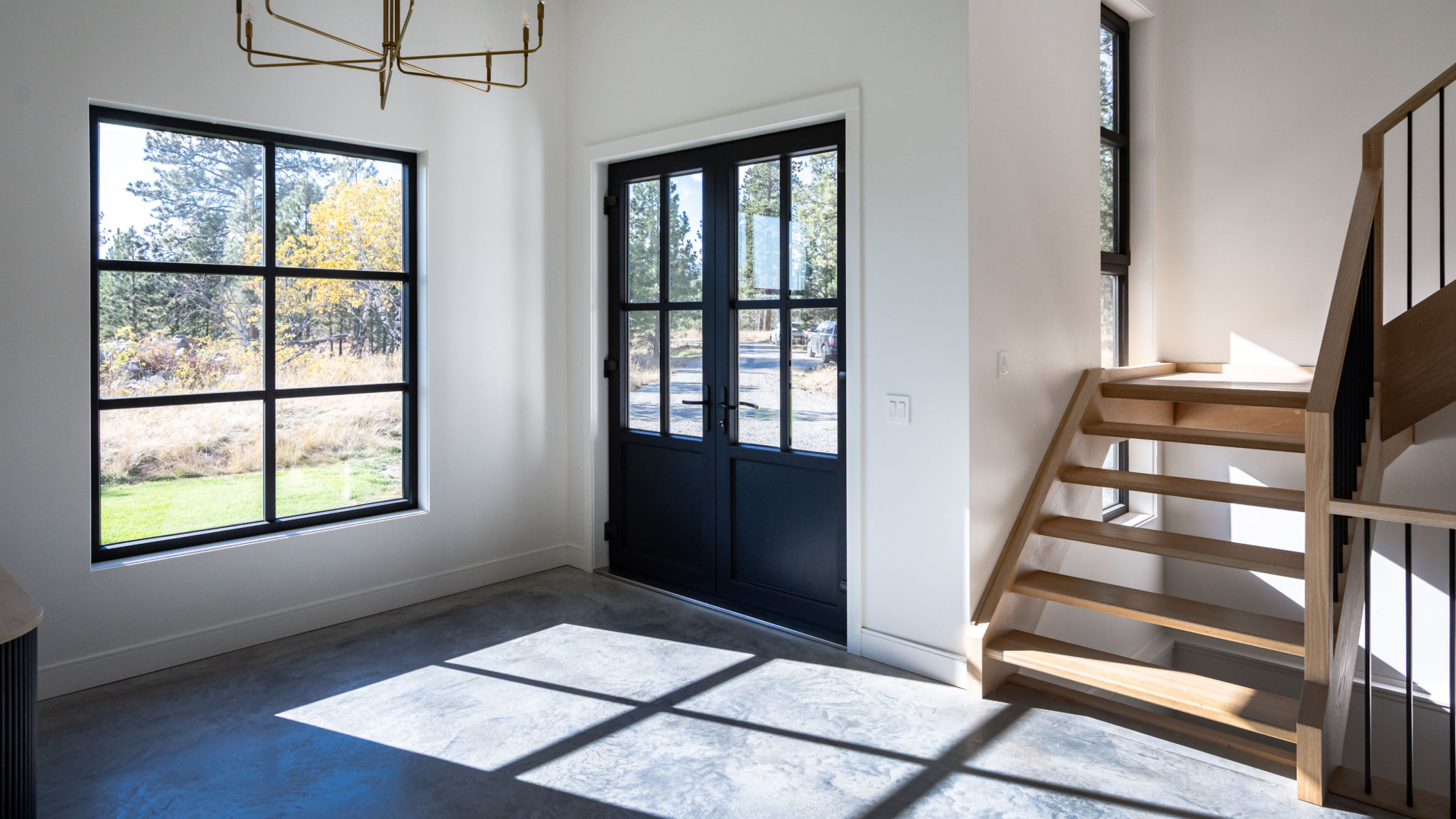

Decorative Grids

Select from surface grids (plant-on grids), simulated divided lites (plant-on with spacer bar) or true divided lites (mullions and sash bars) in a variety of colours, sizes and patterns.

Glazing Options for Windows + Doors

All of our windows and doors are available with a variety of glazing options to ensure your projects achieve its desired performance. Discuss your options in detail with your Product Representative.

Double or Triple Glazing

The Defender 76TS System is available with your choice of double or triple glazing. The wide glazing cavity (1″ for double glazed and 1.5″ for triple glazed) allows the optimal amount of space between each 4mm thick pane of glass to achieve maximum thermal and acoustic performance.

Glass Thickness

The standard glass thickness for our double pane windows is two panes of 4mm thick glass. The standard glass thickness for our triple pane windows is three panes of 4mm thick glass. The thickness of each pane can be customized depending on your specific project requirements. Glass thickness should be discussed with your Product Representative for all projects with specific acoustic performance targets.

LoĒ Coatings

We offer three choices of LoĒ coatings: LoĒ-180™, LoĒ-270™ and LoĒ-366™. LoĒ coatings are used to control the solar heat gain on windows and doors. Coating are selected based on the individual project – and window and door! – performance requirements.

LoĒ-180 by Cardinal Glass Industries

Suggested use:
-In colder climates where solar heat gain is wanted

-On the north face of the building where there is no direct sun

-On windows and doors that are heavily shaded by overhangs, trees or other buildings

LoĒ-270 by Cardinal Glass Industries

Suggested use:

-Good “all around” option for most projects
-May not be ideal for exposed south or west facing windows and doors in warmer climates

LoĒ-366 by Cardinal Glass Industries

Suggested use:
-In warmer climates where solar heat gain needs to be limited
-On exposed south or west facing windows

-Best option to maximize u-value

Decorative Glass for Windows + Doors

Decorative glass can be added to your windows and doors for visual appeal or privacy needs.

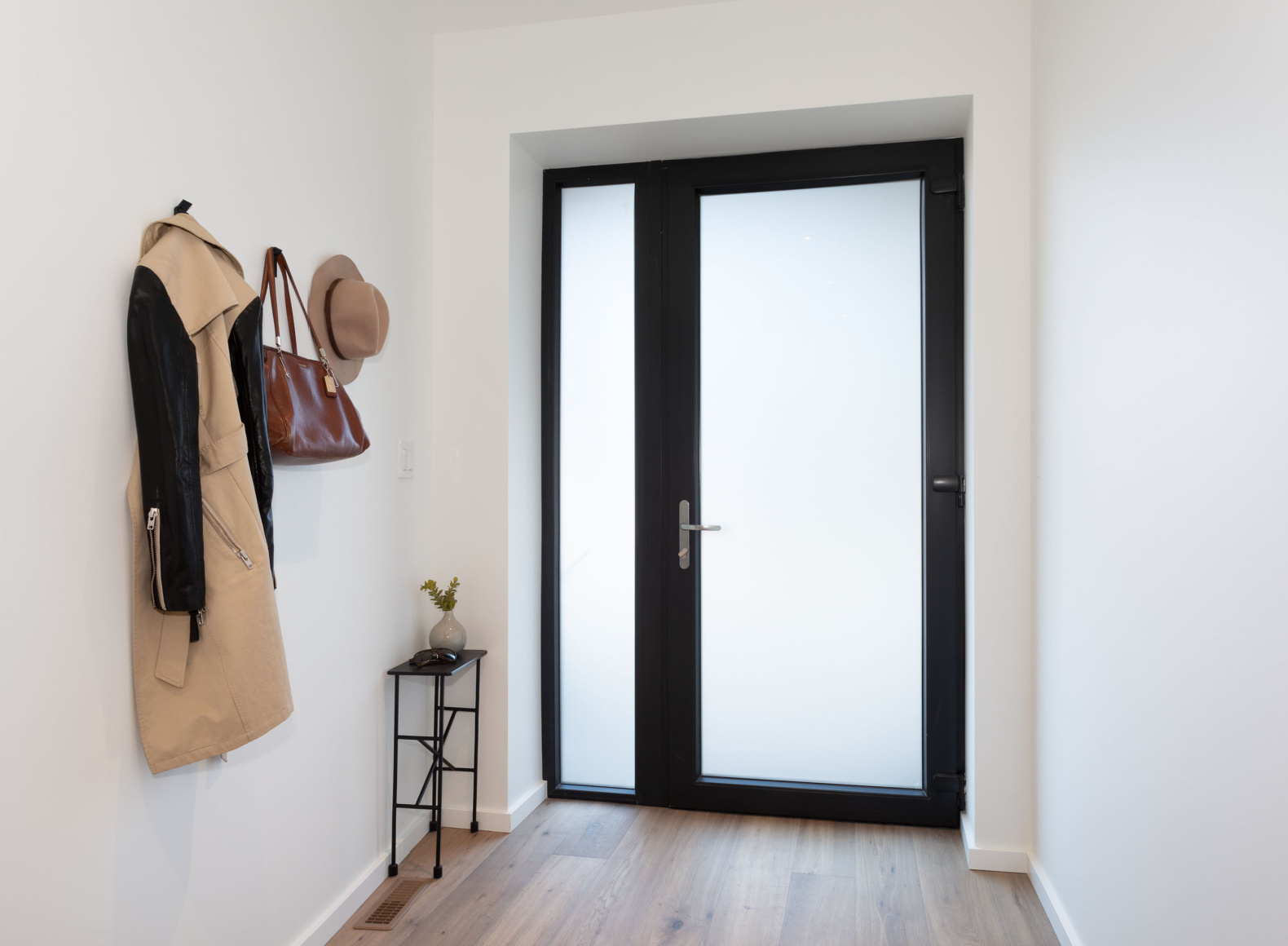

Privacy Glass

Decorative or privacy glass is an excellent solution for windows and doors in spaces that need a little extra style or privacy. Click here to view available decorative and privacy glass options.

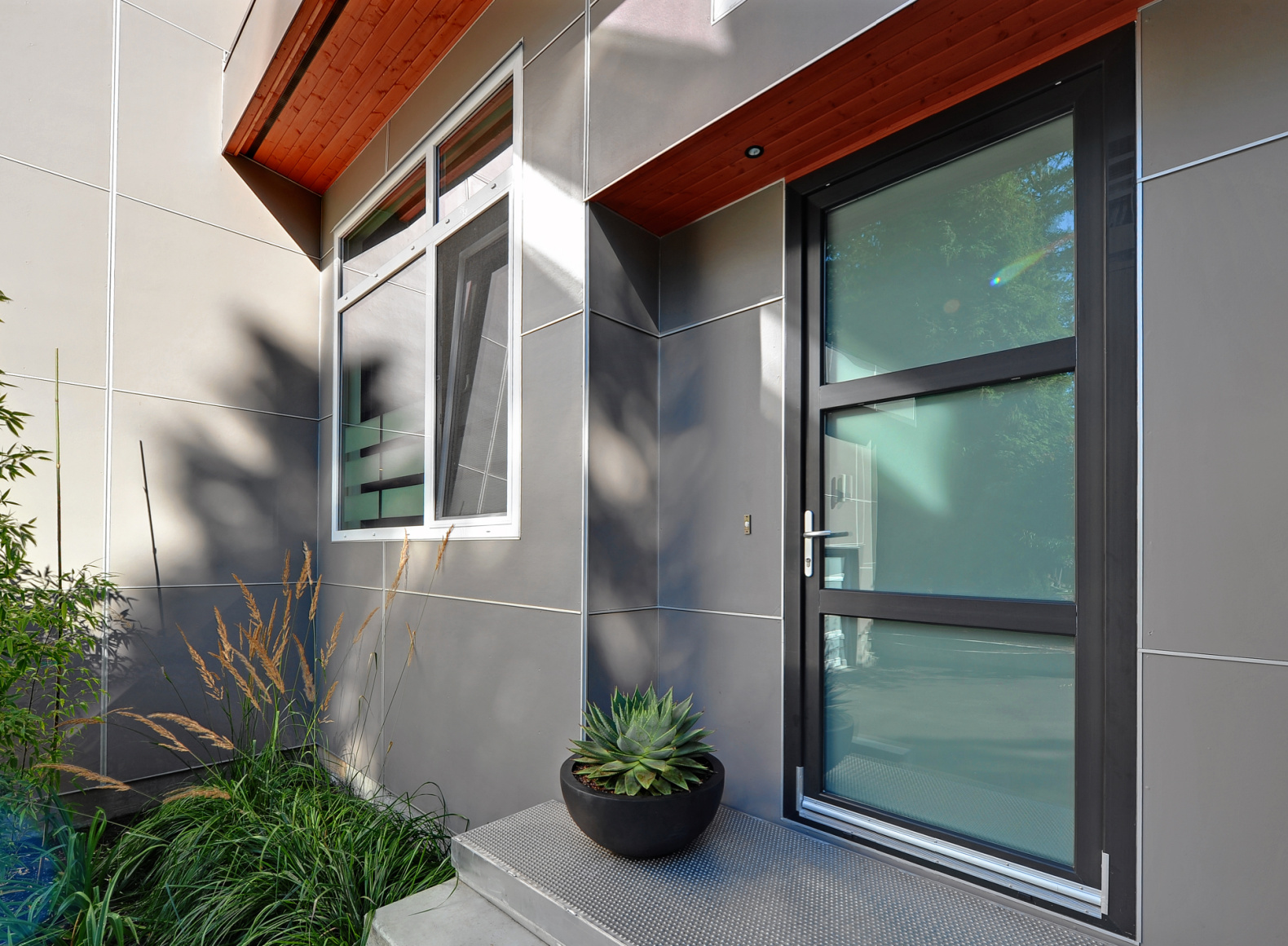

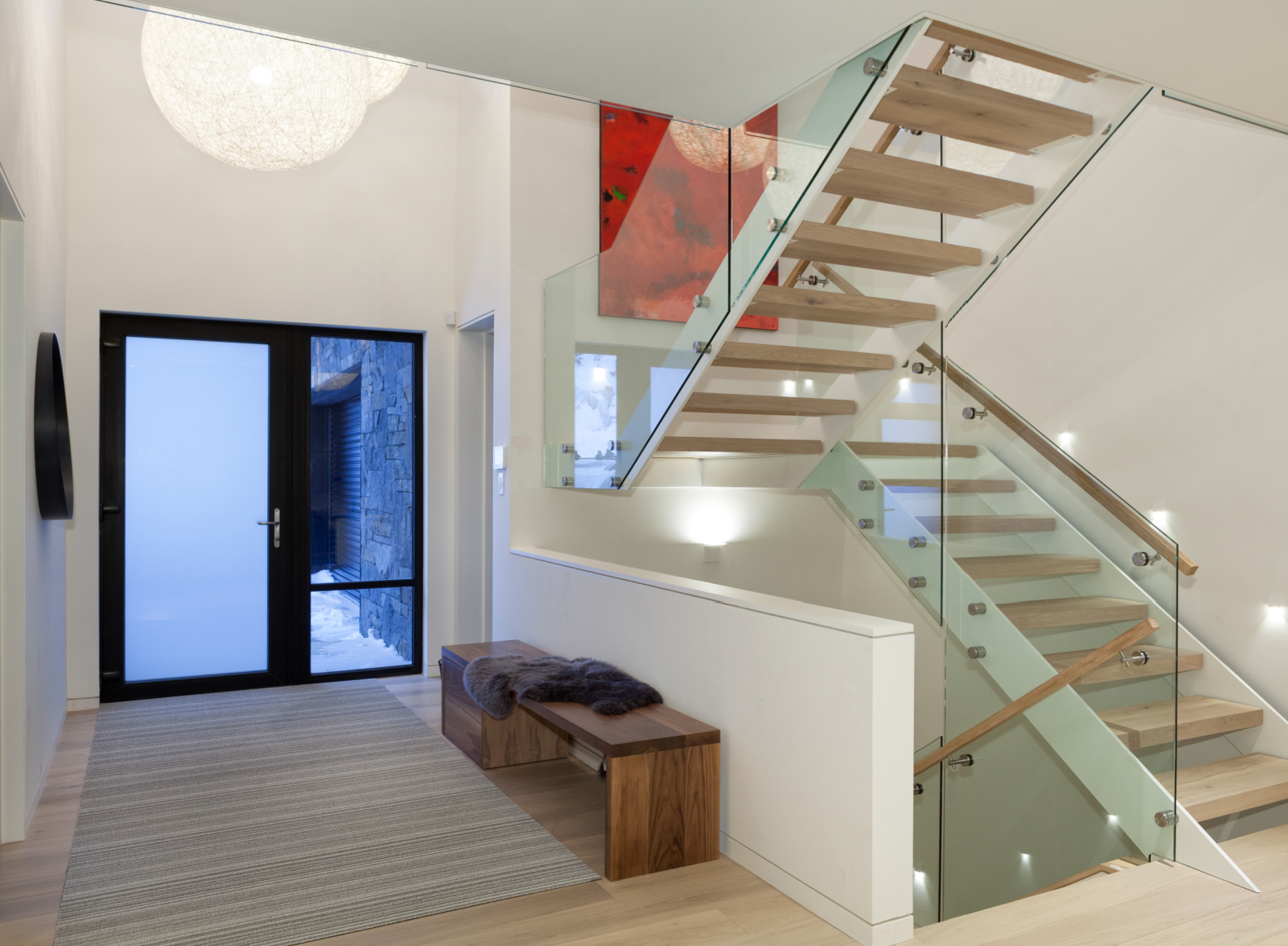

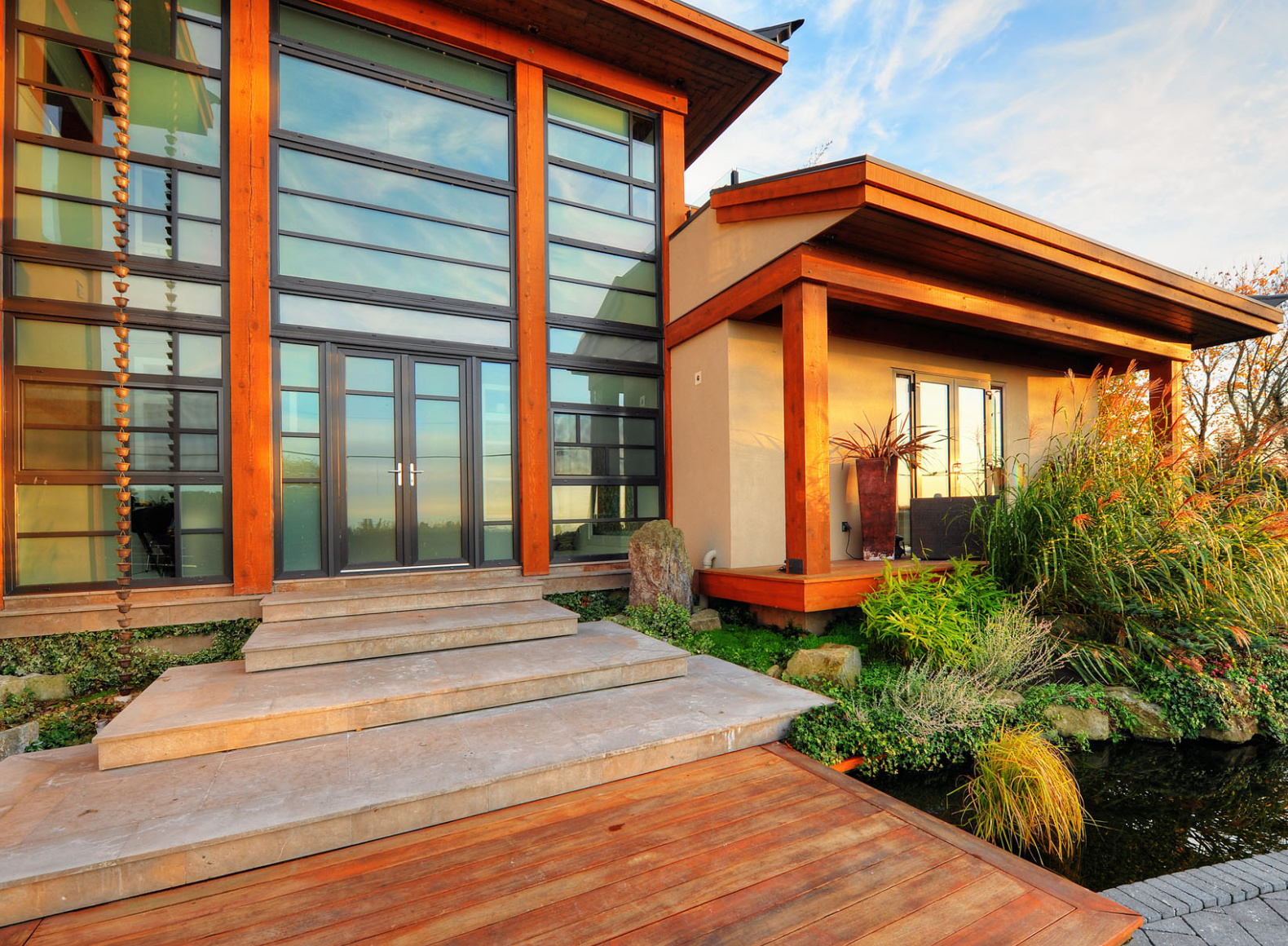

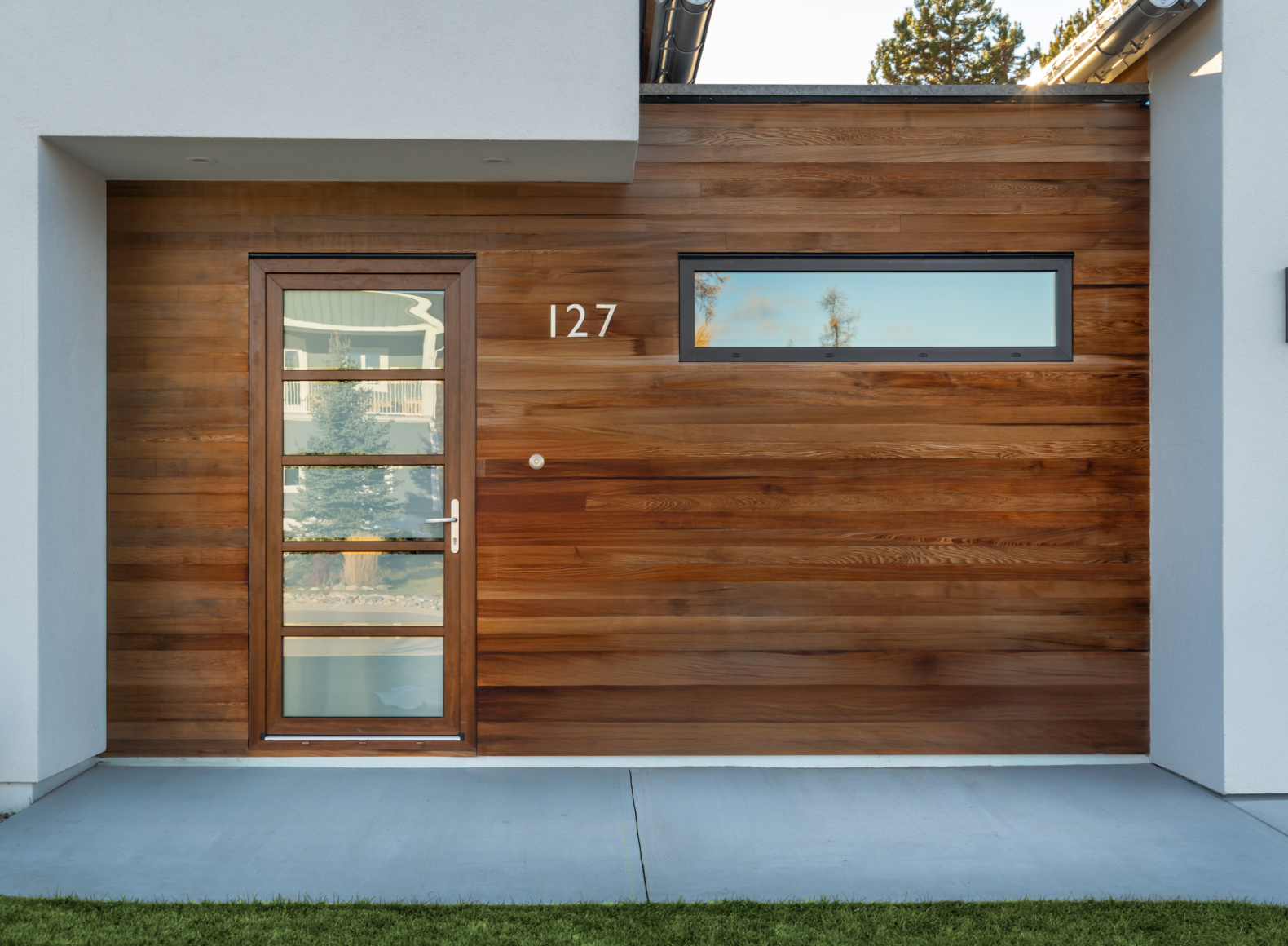

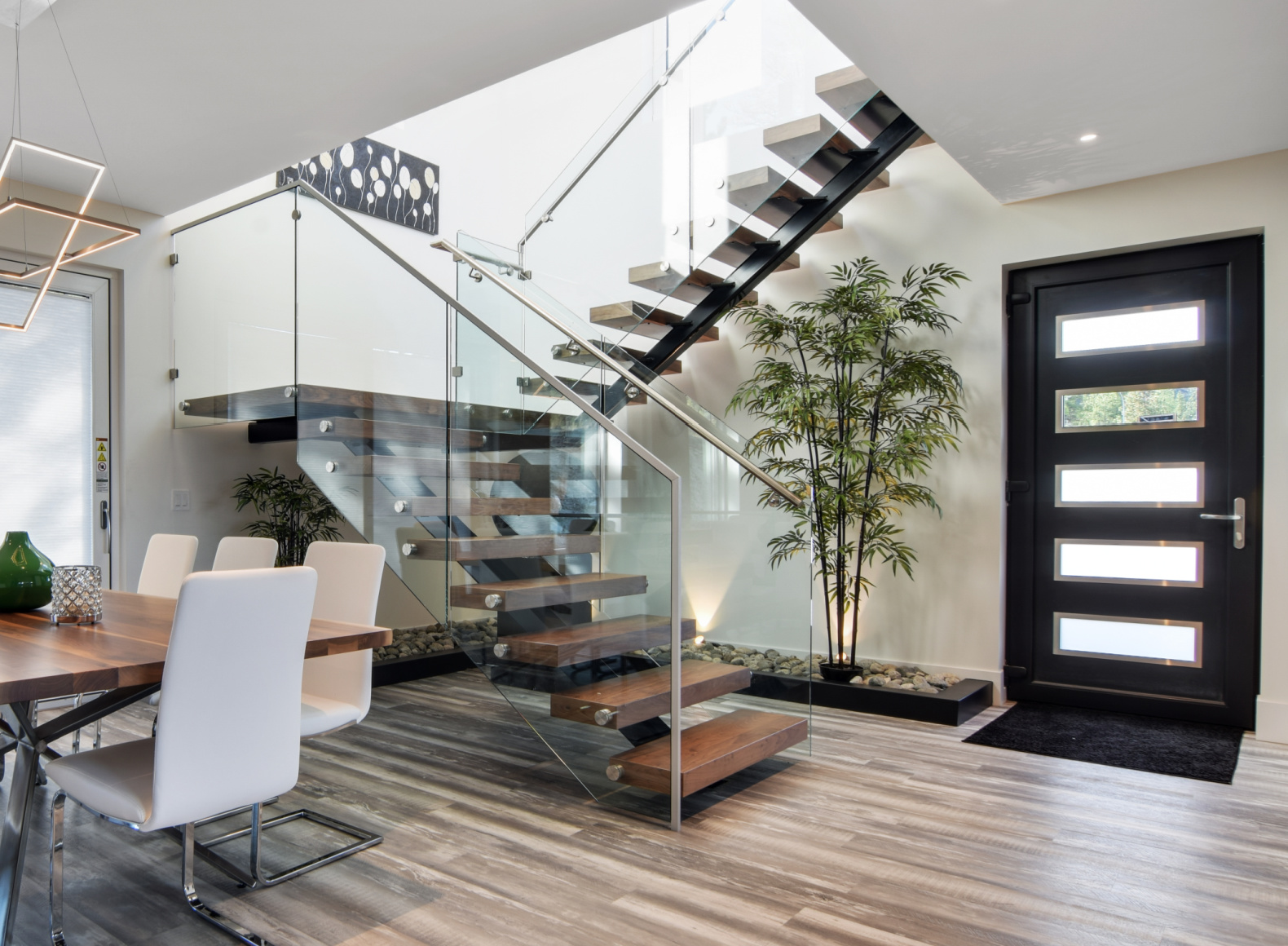

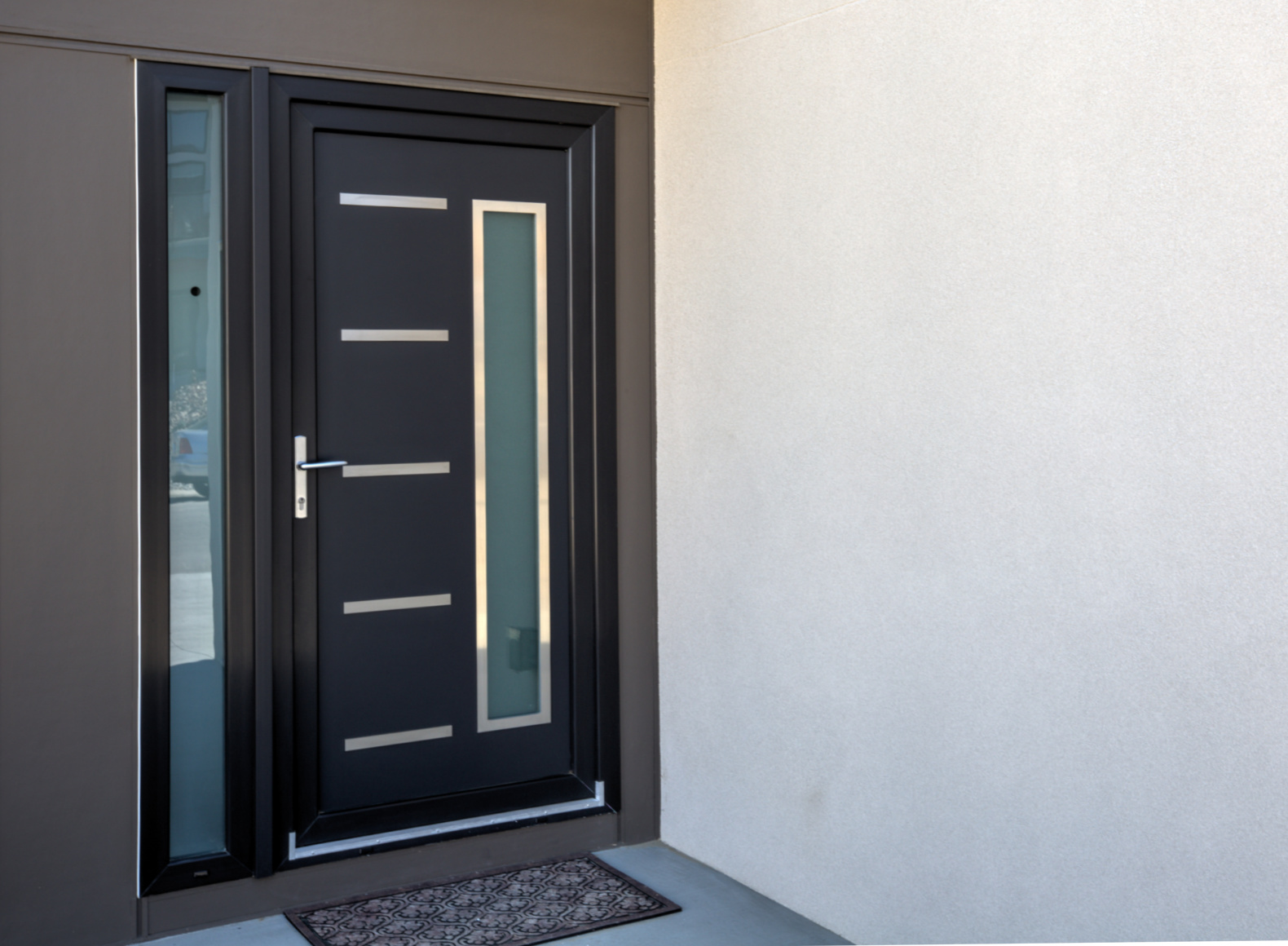

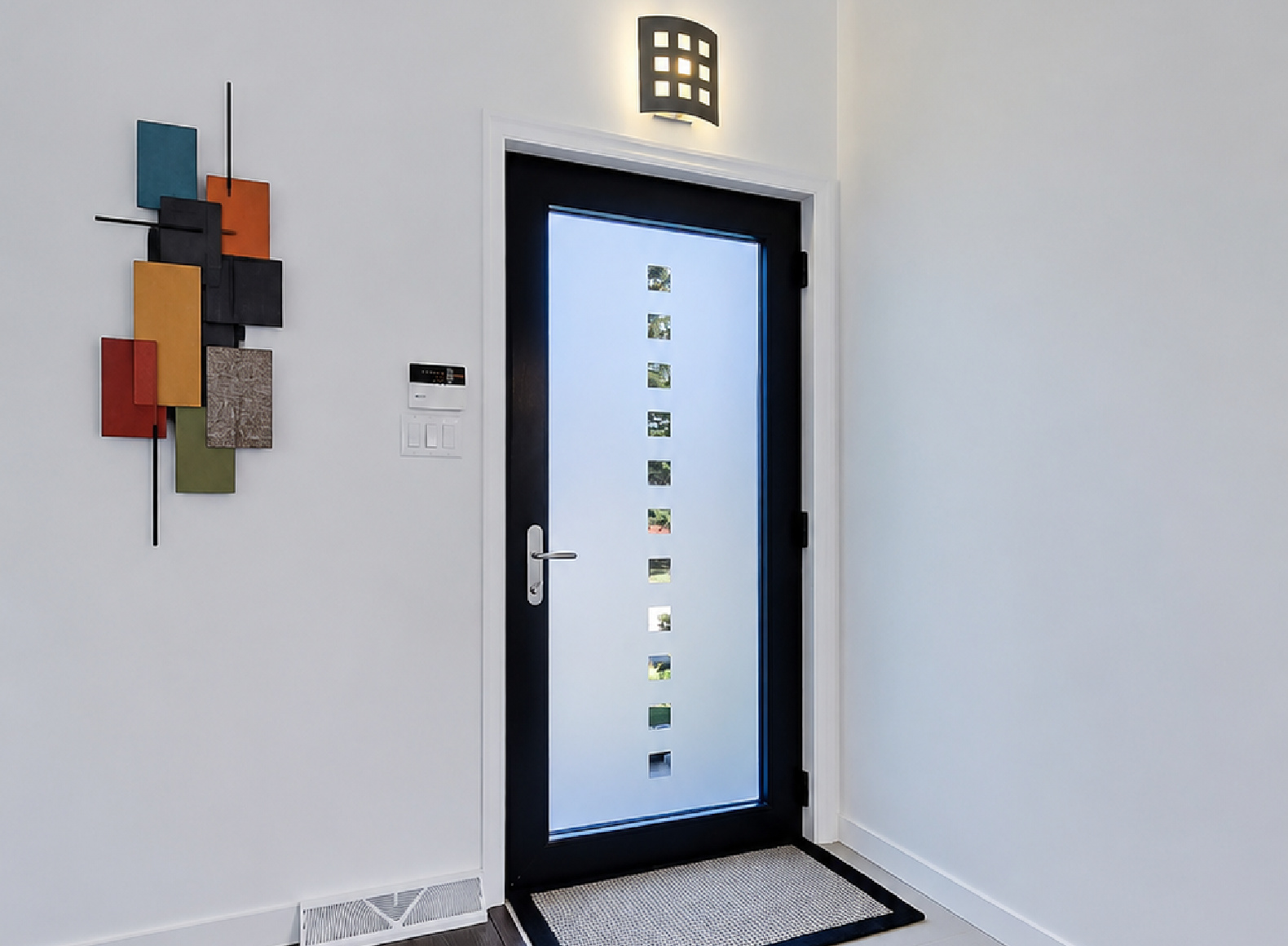

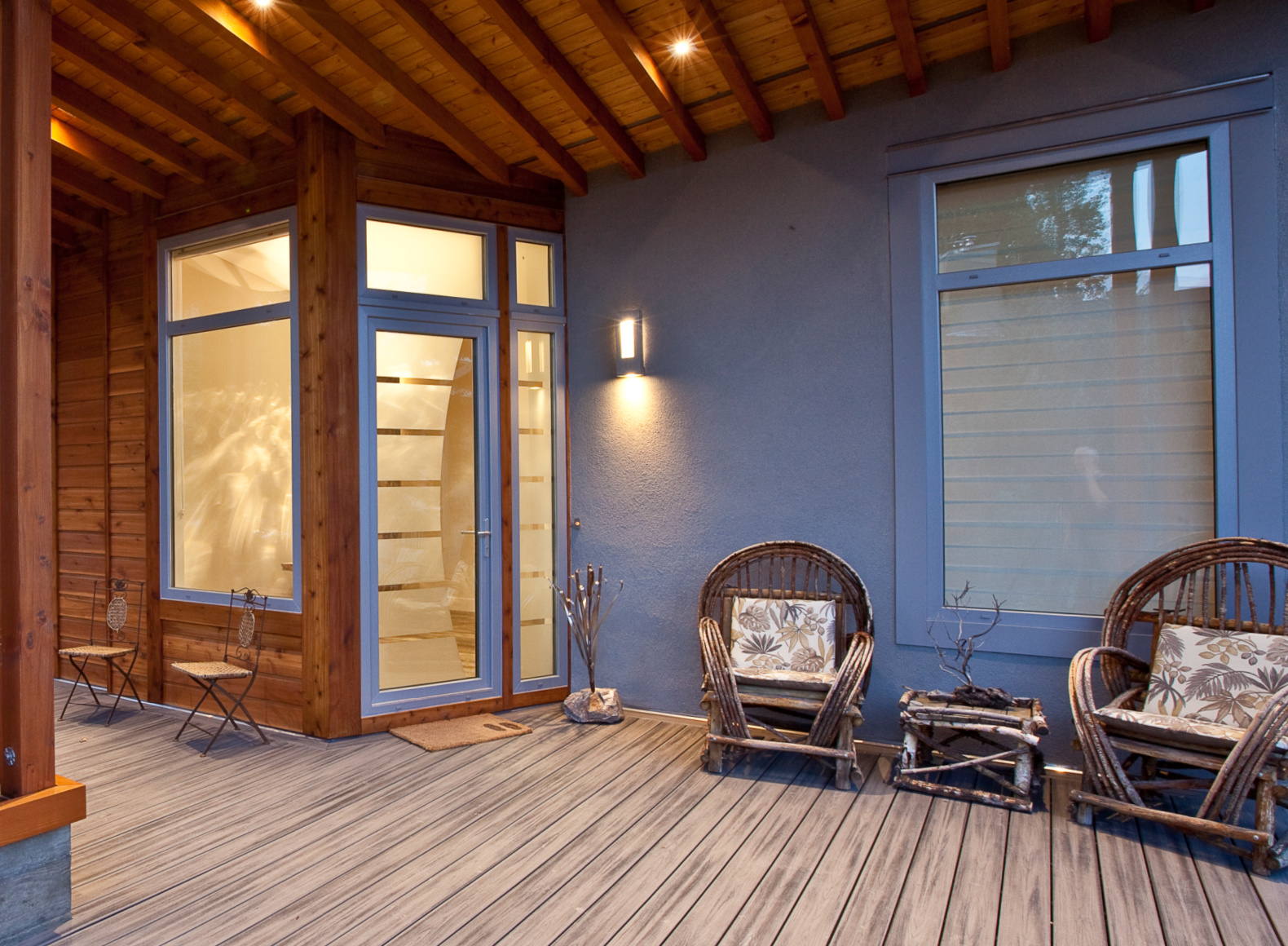

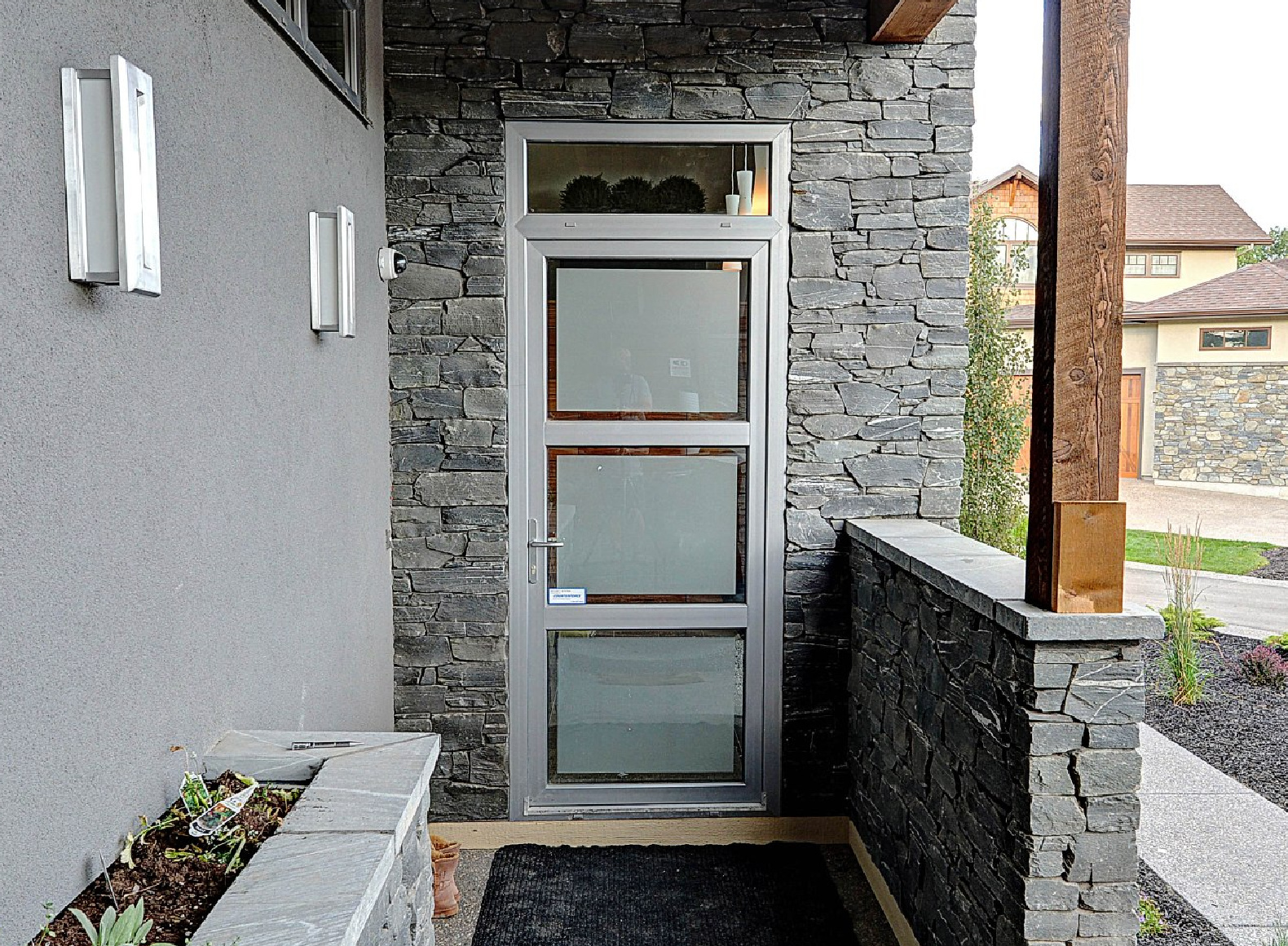

Sandblasted Glass

A number of sandblast designs are available for windows and doors. Sandblasted glass not only adds visual impact, but can also be used to for privacy. Click here to view available designs or create your own.

CLiC Smart Privacy Glass

Designed for seamless living, CLiC® glass shifts instantly between clear and private, with no delays, distortions or tints. Click here to learn more about CLiC glass.
